| Length mm |
1495 |
|
|
|
| Width mm |
970 |
|
|
|
| Height mm |
1000 |
|
|
|
| Ground clearance mm |
120 |
| wheel gauge |
Front mm |
795 |
| Rear mm |
680 |
| Wheel Base mm |
965 |
| Complete Vehicle Dry Mass KG |
121 |
|
|
|
| Complete Vehicle Kerd Mass KG |
123 |
|
|
|
| Manufactturer’s Maximum Loading Mass KG |
100 |
| Steering Baar Angle |
≥15° |
| Max Speed km/h |
≤48 |

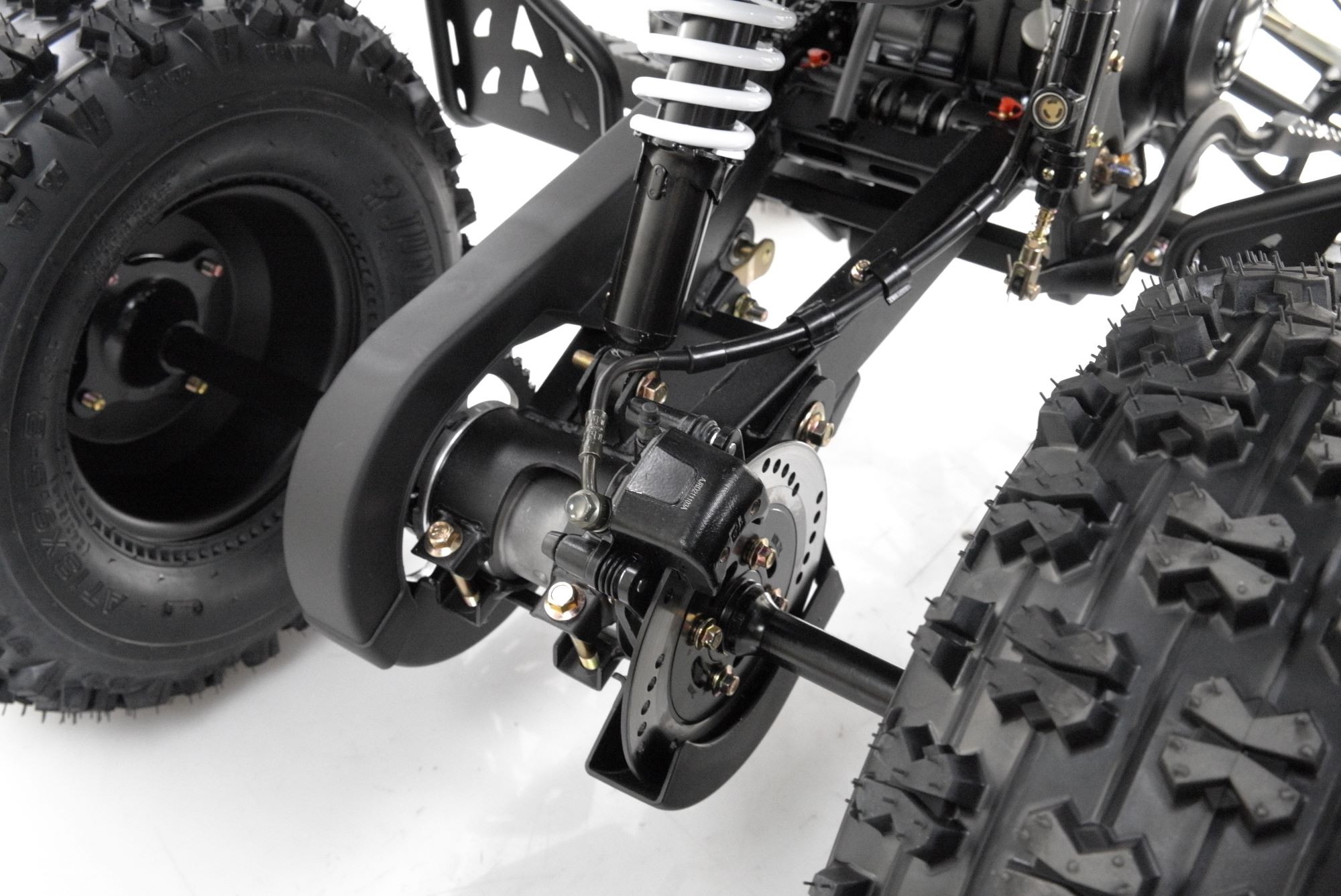

| Brake Type |
Front: Disc Brake |
| Rear: Disc Brake |

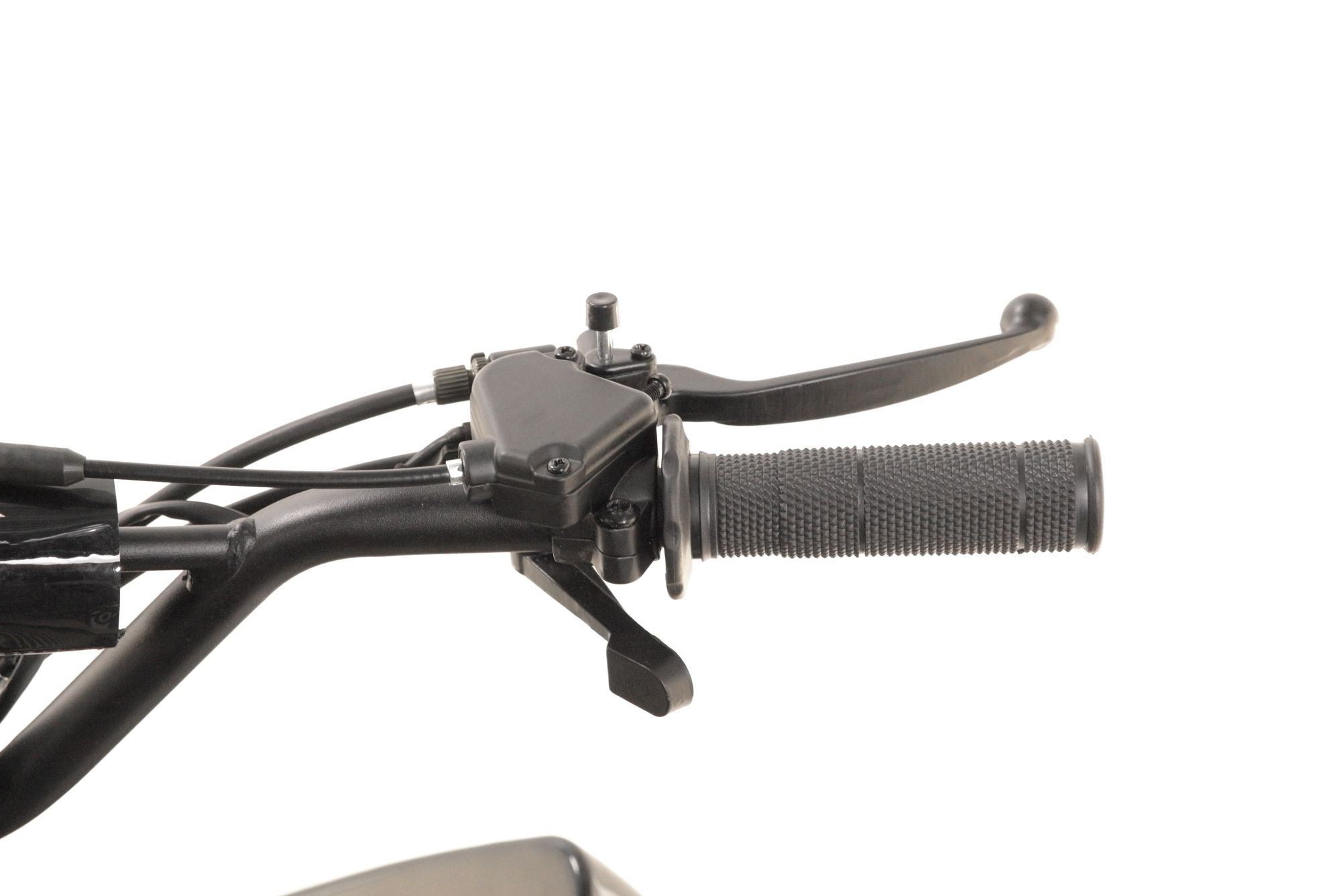

| Brake Actuation |
Front: Hand Operated |
| Rear: Foot Operated |
| Tyre size |
Front |
19X7.0-8 |
| Rear |
18X9.5-8 |

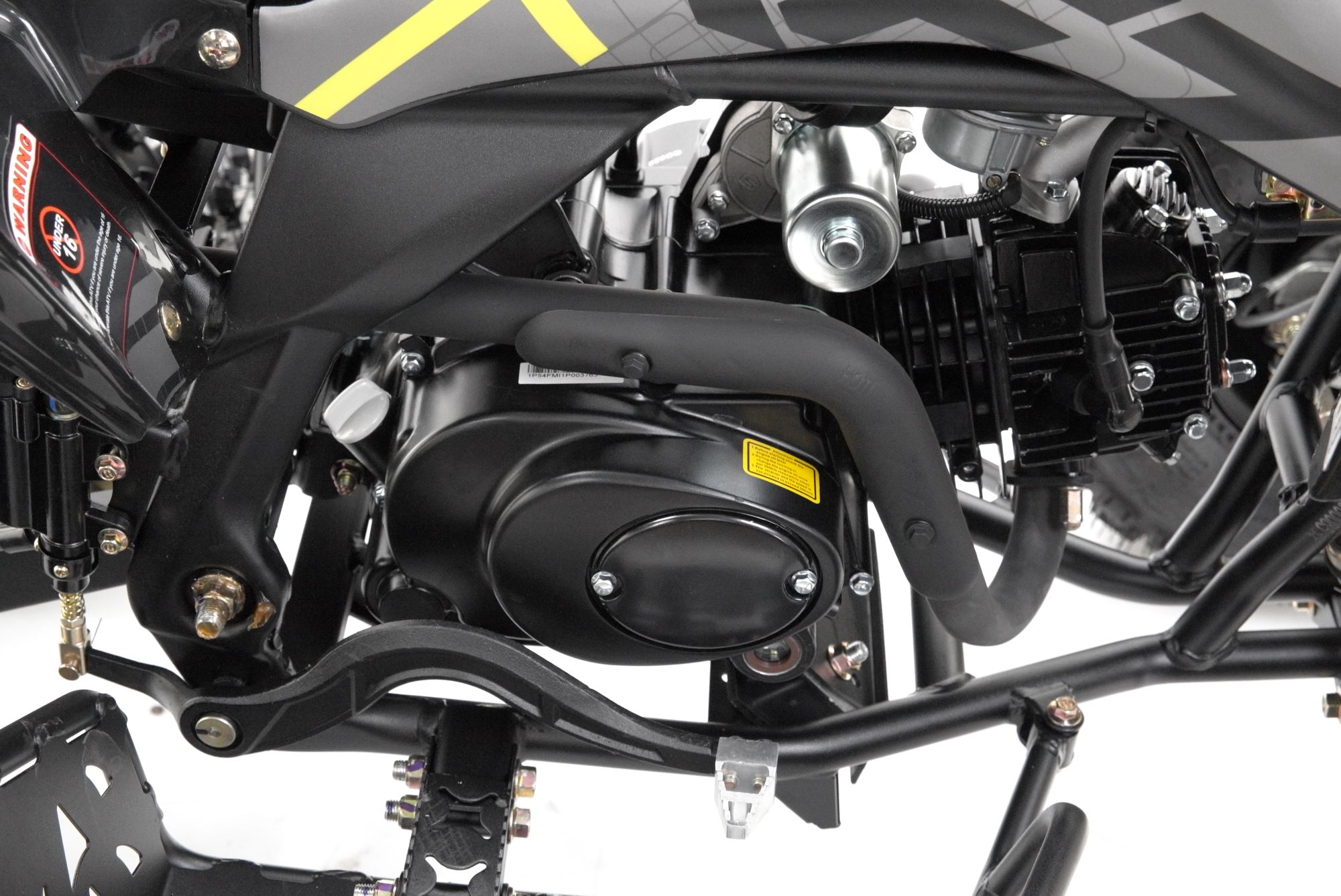

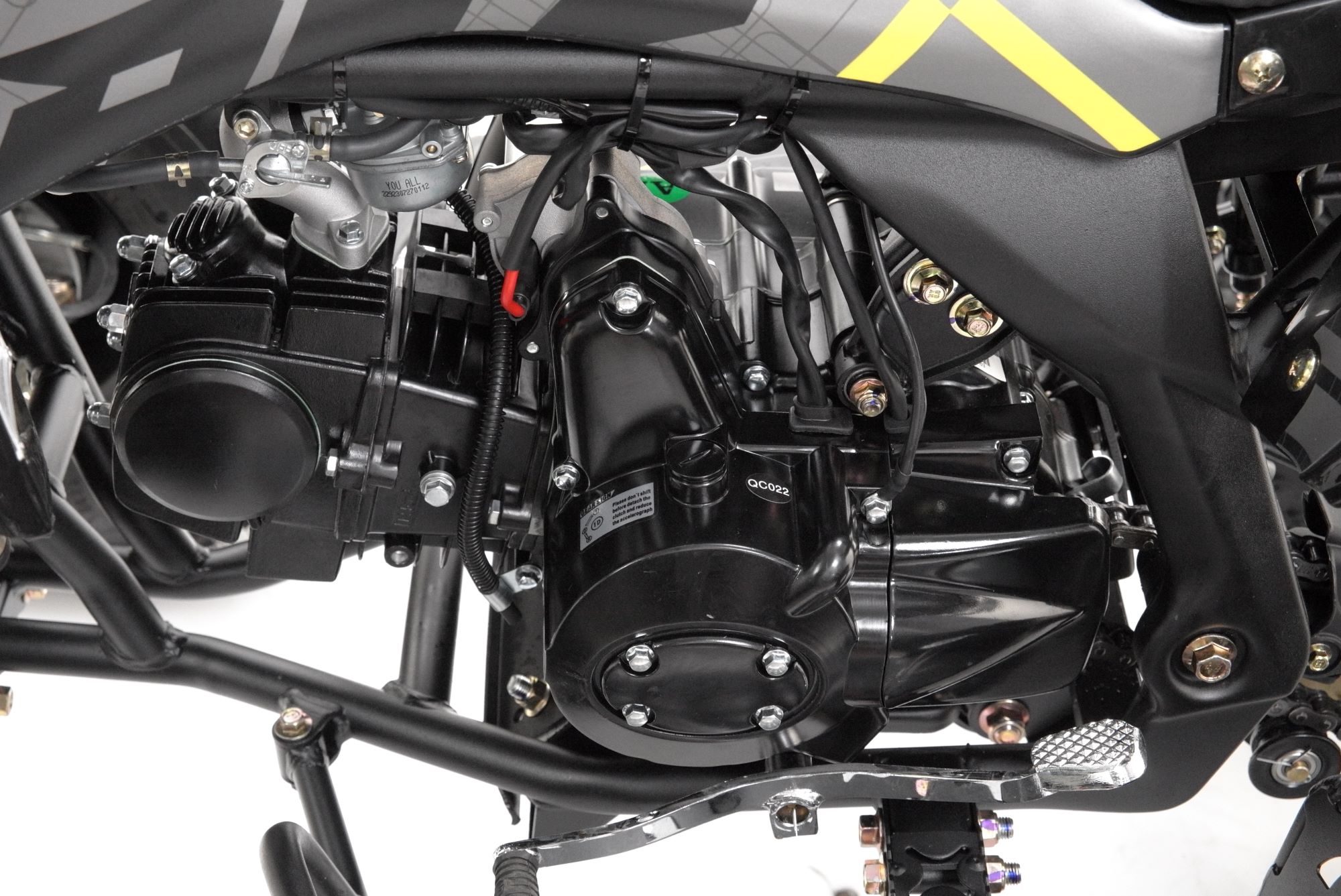

| Engine Mode |
152FMI |
| Engine Type |
Semi-automatic, Single cylinder, 4-Stroke, Air-cooled, Horizontal |
| Displacement cm3 |
119.7 |
| Compression Ration |
9.0:1 |
| Max. Power kw(R/min) |
5.5/7500±500 |
| Max. Torque N.M(R/min) |
8.5/7500±500 |
| Idle Speed |
1500±500 r/min |
| Starting Method |
Electric |
| Ignition Method |
CDI |
| Lubrication Method |
Pressure and Splash |
| Clutch Method |
Automatic Wet Multi-Plate |
| Spart Plug Type |
A7RTC |
| Engine Oil Capacity |
0.9L |
| Engine Oil Type |
SJ-10W/40 |
| Magneto |
Permanent Magnetic |
| Electric Horn Type |
12V1.5A |
| Battery Model |
12V 5Ah |
| Fuel Tank Capacity |
2.2L |
| automotive chassis frame |
Steel pipe welding type |
