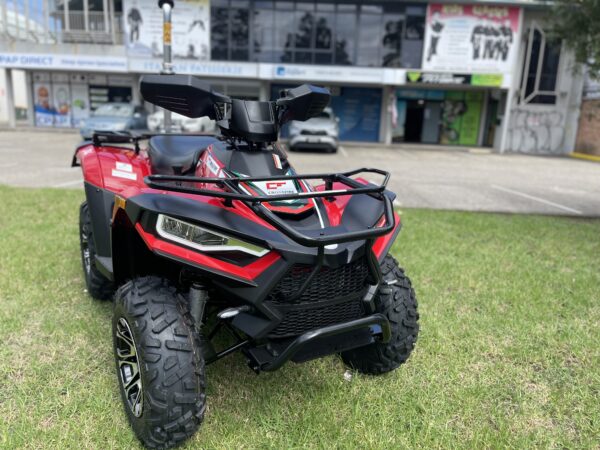

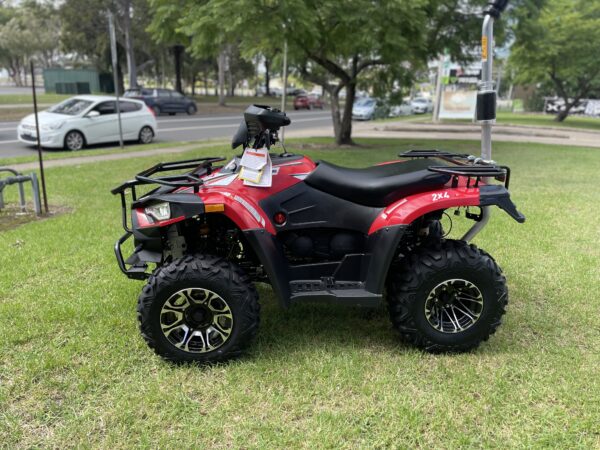

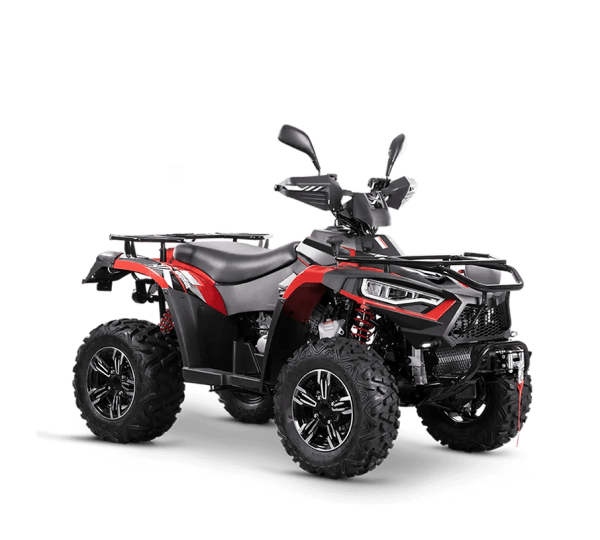

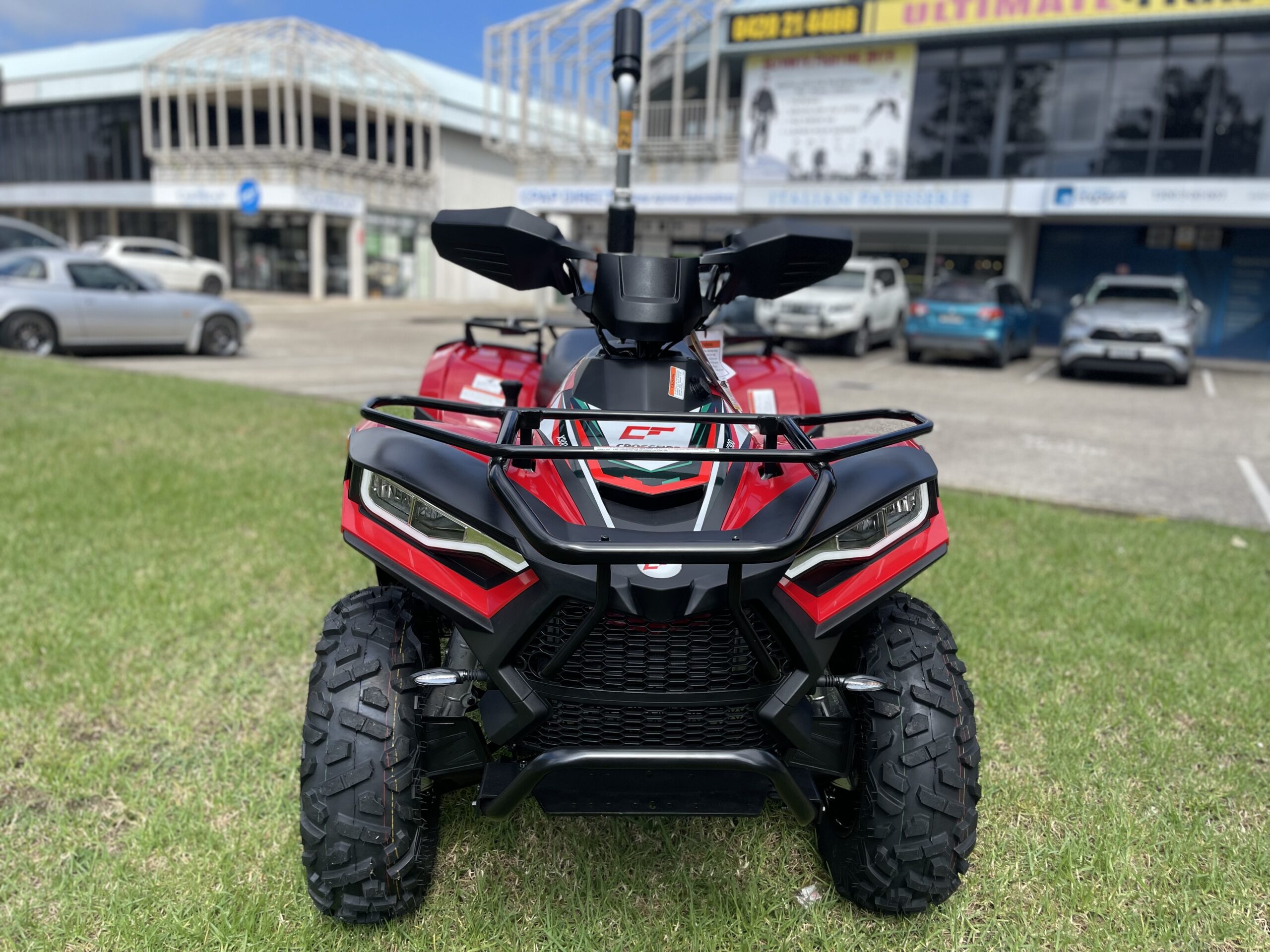

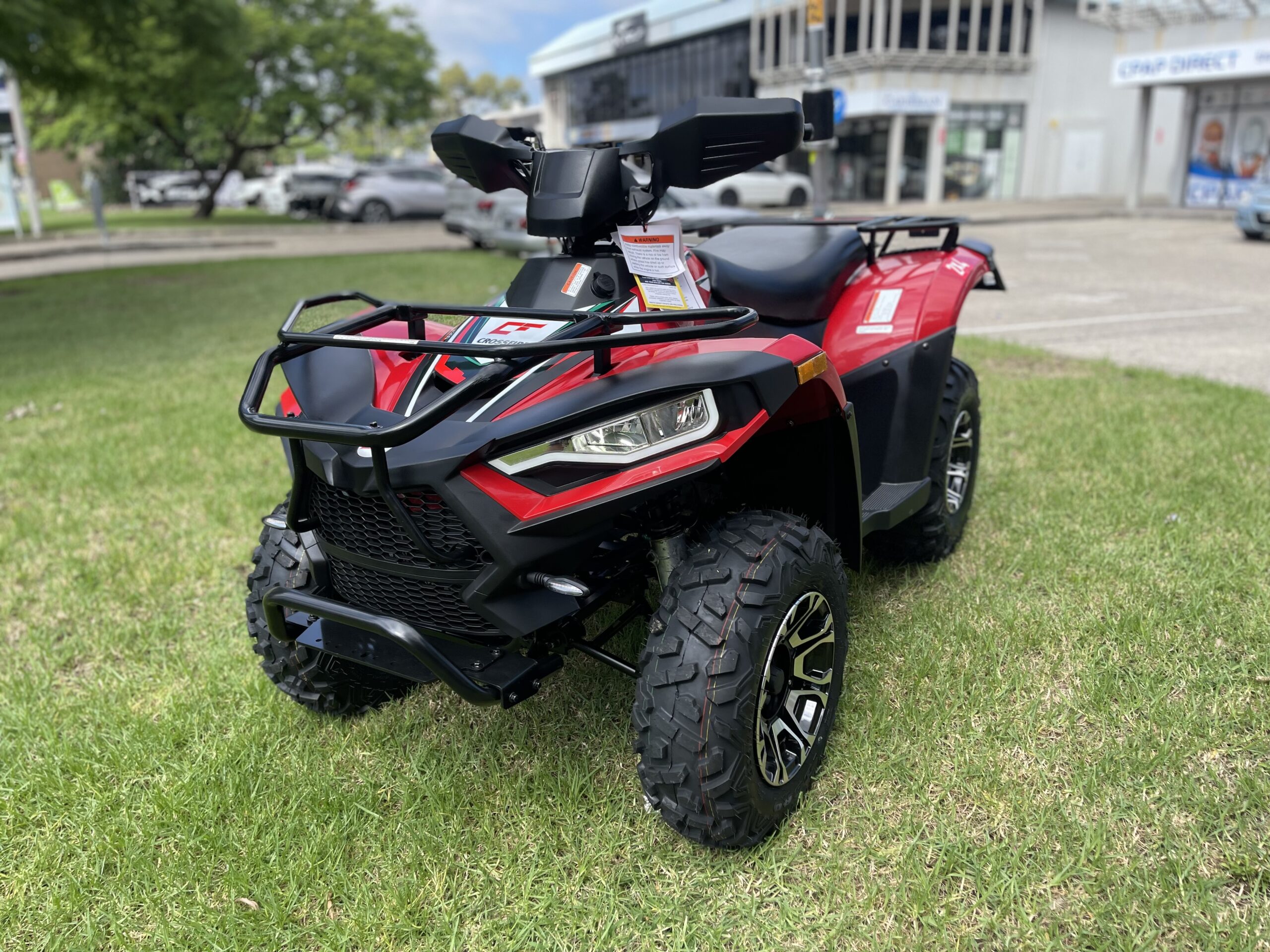

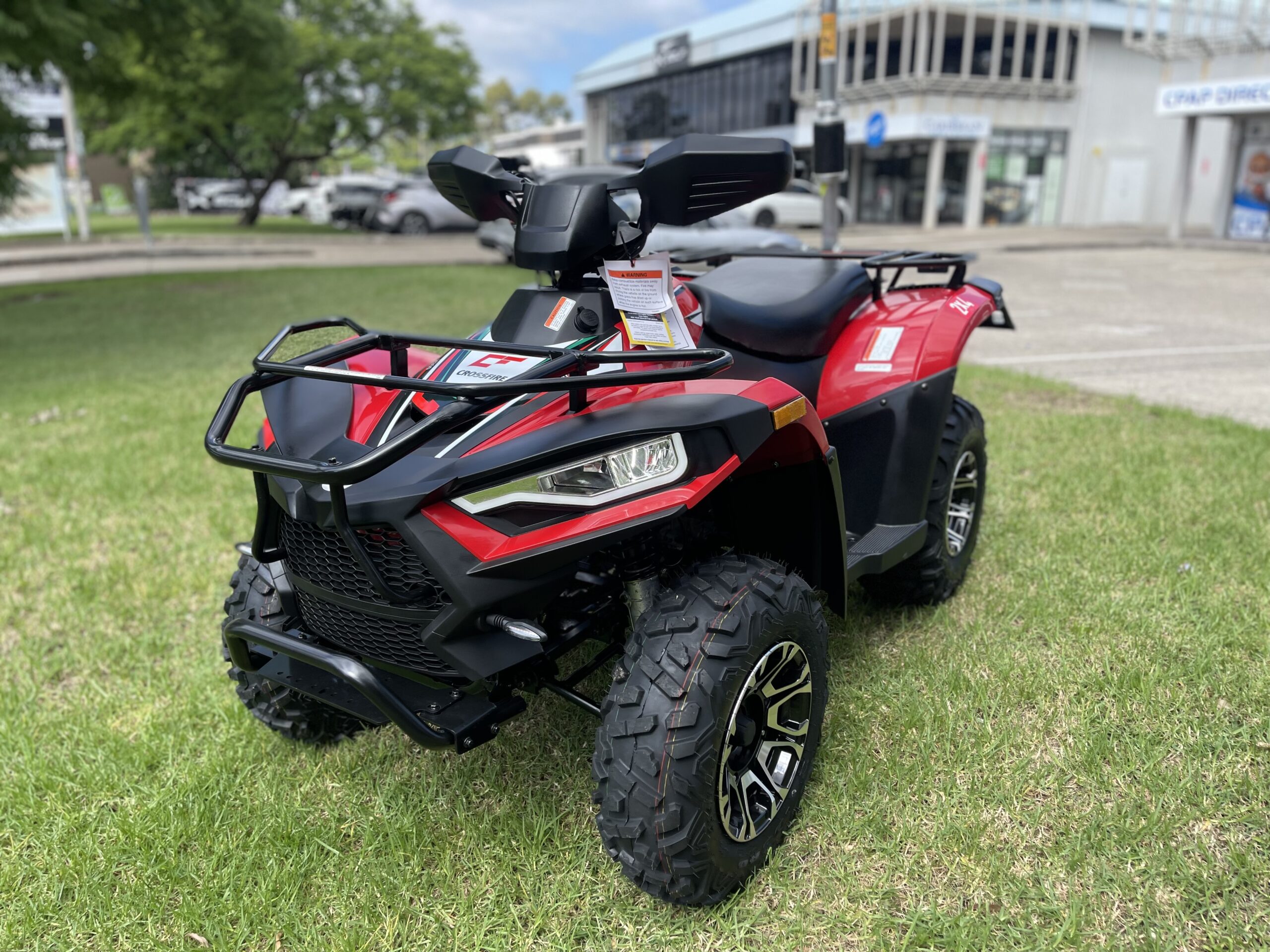

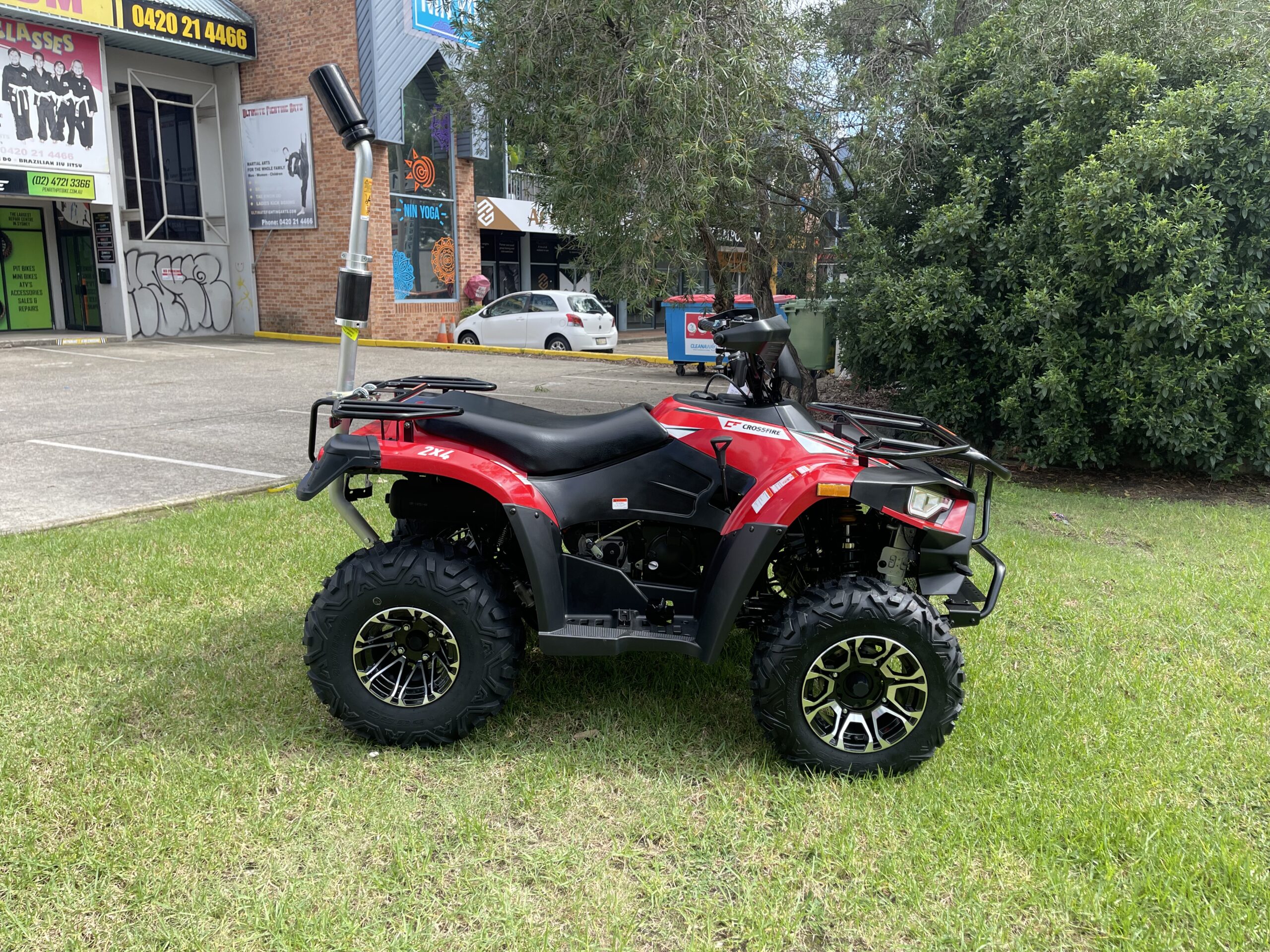

    The X300 is an addition to our growing fleet of ATVS.

    When we design each of our machines there is a purpose and a reason for existence. We have in mind the size and type of use our customers will put our machines through.

    The X300 is a farm spec machine and it is the first in range to go to shaft drive differential drive. The system is sealed and does not require daily maintenance like chain drive systems do. The Crossfire X300 has a larger and more comfortable seating position than its smaller X2 sibling.

    The torque is dramatically increased and the larger clutch unit means lite towing is permissible.

    With water-cooling and large radiator specified for Australia conditions we believe this hard working quad will work as had in the Kimberly as it does in Toowoomba.

    X300 Standard Features:

    • Liquid cooled
    • Shaft Drive 2×4
    • Aluminium Wheels
    • Enclosed footboards
    • Day time running lights

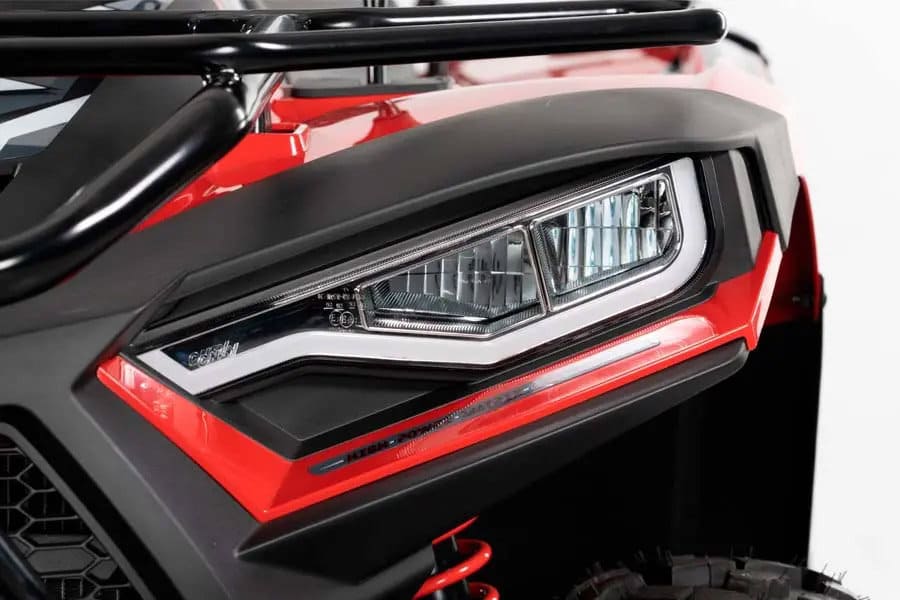

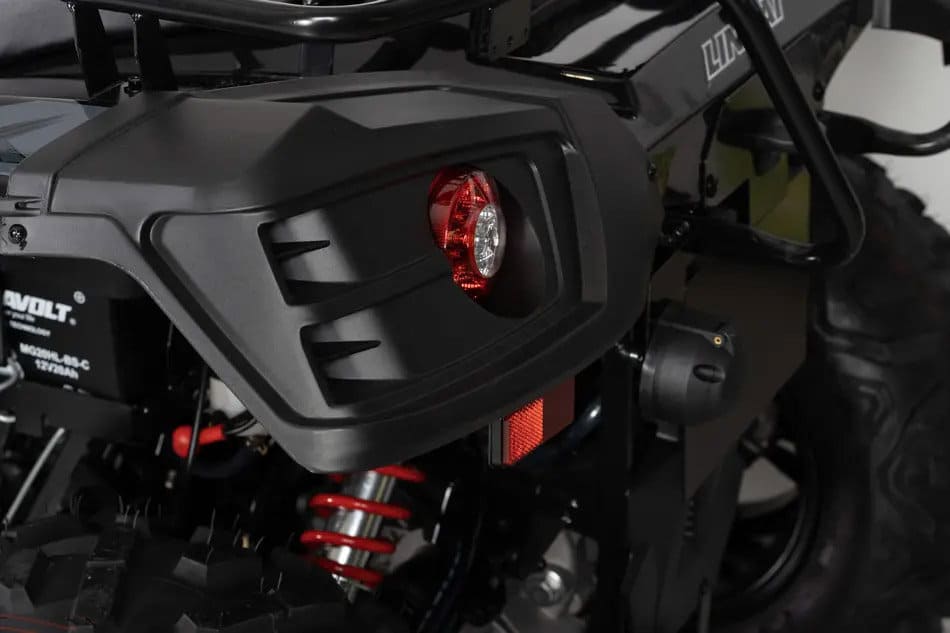

    • LED Lighting

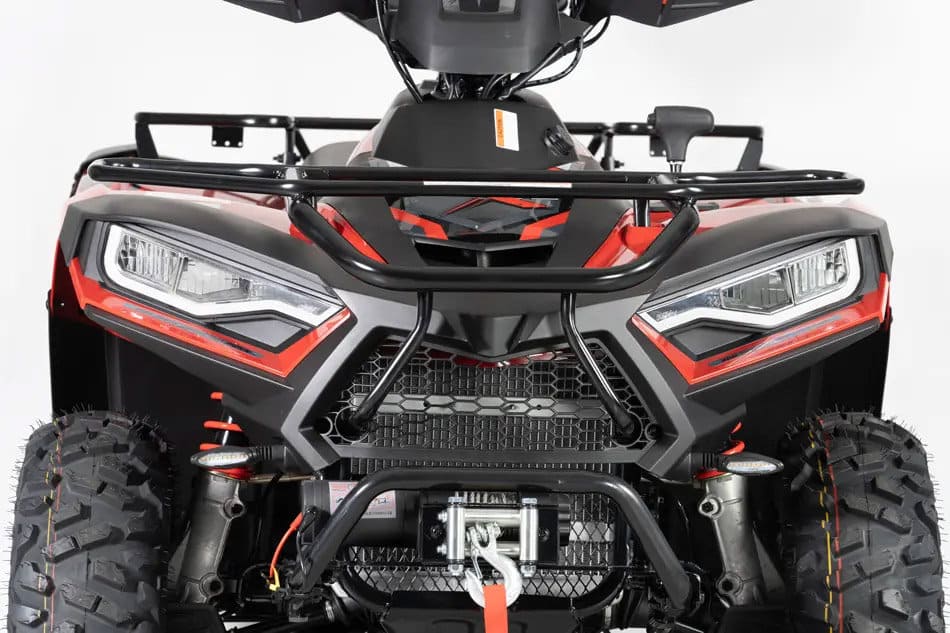

    • Quadbar Fitted

    Additional information

    Weight 310 kg
    Dimensions 210 × 114 × 127 cm
    Engine LH173M, Single cylinder, 4 stroke
    Bore x Stroke 72.5 × 66.8 mm
    Compression Ratio 9.5:1
    Fuel System CARB
    Cooling Water Cooled
    Start Type Electric
    Transmission Automatic L-H-N-R
    Drive Rear Wheel Drive 2×4
    Suspension / Brakes / Tyres

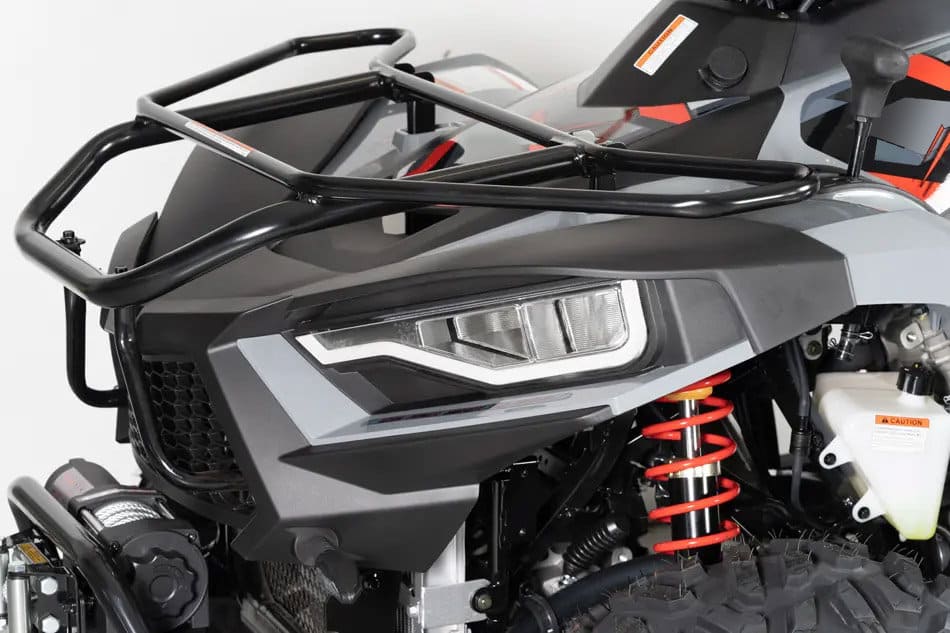

    Suspension Front McPherson independent suspension
    Suspension Rear Swing arm
    Brakes Front Disk brake
    Hand brake, Foot brake
    Brakes Rear Disk brake
    Hand brake, Foot brake
    Tyres Front AT24×8-12
    Tyres Rear AT24×11-10
    Product Dimensions 2100mm × 1140mm × 1270mm
    Ground Clearance 170 mm
    Wheelbase 1215 mm
    Load Capacity 129kg
    Dry Weight 310 kg
    Fuel Capacity 14 L
    Max Speed >60 km/h

    Warranty12 months up to 24 months** If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years
    for vehicles 250cc and up. Please make sure you have proof of services.
