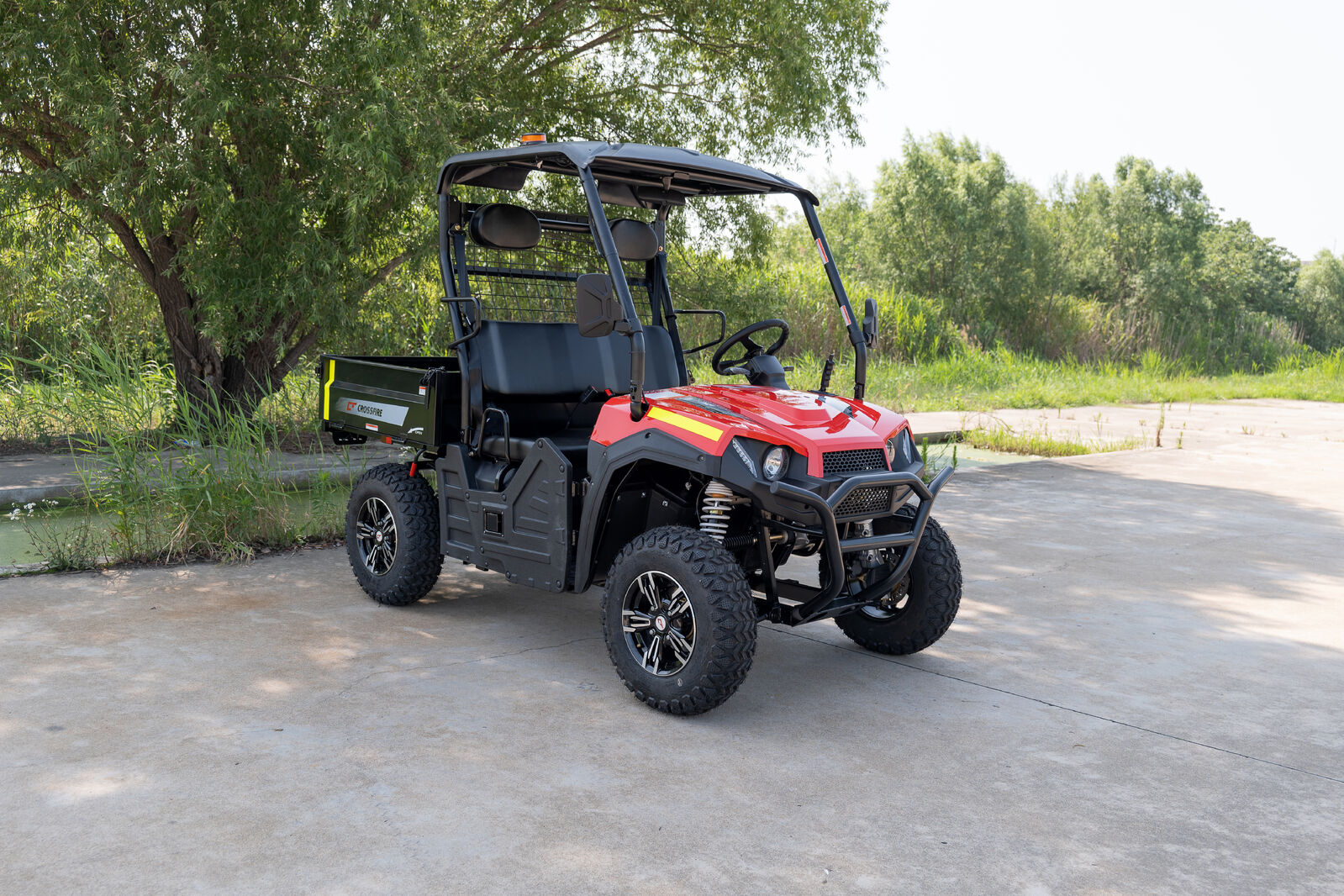

E5 Included Features:
- 13.5 Hp Electric AC motor
- Selectable drive power modes
- Independent Front and rear suspension

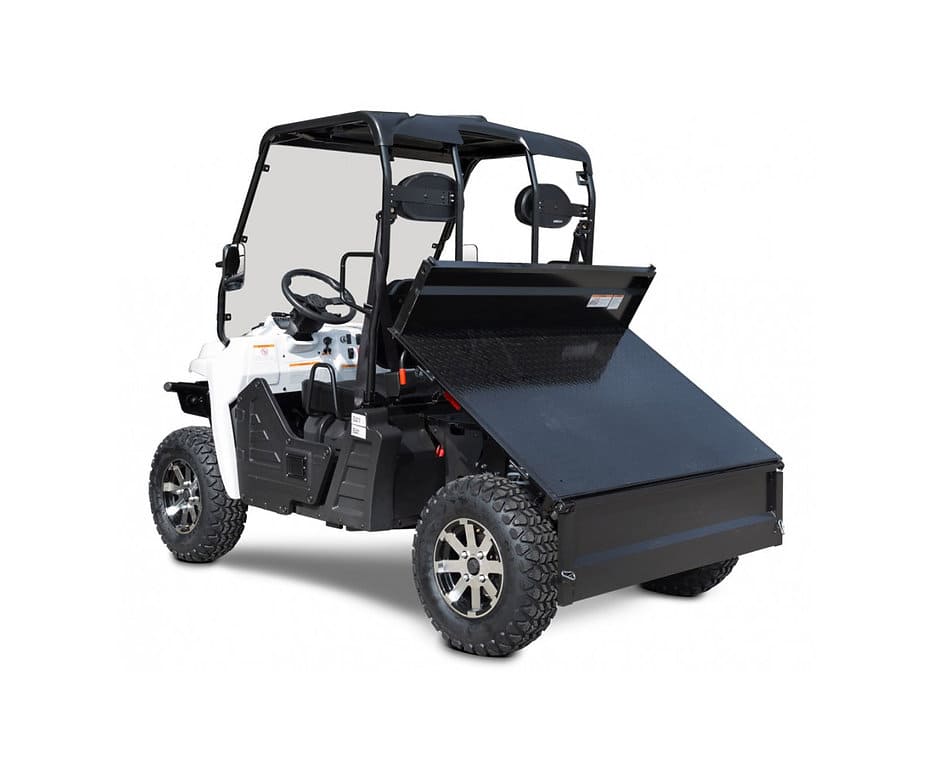

- Metal Tray
- Lockable Rear differential
- Half Cabin doors
- Windscreen

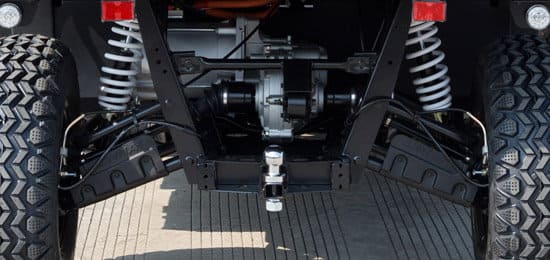

- Tow hitch
Our Product
- Features
- Additional information
- Specification
- Suspension
- Dimensions
- Warranty
- Battery Range Disclaimer
- Reviews (0)
Additional information
| Color | Red, White |
|---|
| Motor | |
|---|---|
| Type | Three phase induction electric motor with copper rotor |
| Battery Voltage | 60V DV |
| Performance | 9.7 kW / 1950-2100 rpm Peak |
| Battery Type | 5x maintenance-free battery Gel Professional Deep Cycle AGM 12V / 100Ah |
| Charge Time | 8 hours approximatel |
| Range: ECONOMY mode: | 90 km * |
| Range: POWER mode: | 85 km * |
| * Data on the rolling road based on the driving average speed of 30 km / h without load. Adding load will reduce the range by 50% or more . Effective range can be 20-30km once loaded. While there is still no guarantee of being able to achieve the maximum distances advertised on a single charge – because driving styles, driving conditions, and geography can affect battery power consumption |
| Chassis / Suspension / Brakes | |
|---|---|
| Suspension Front | Independent McPherson Hydraulic fluid dampers |

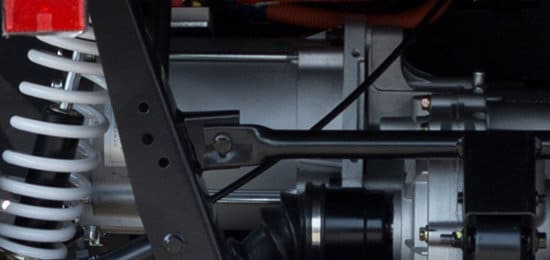

| Suspension Rear | Independent, double A-arm IRS hydraulic liquid dampers, p RUŽÍN with adjustable preload |
| Brakes Front | 2x hydraulic disc with drilled discs |
| Brakes Rear | 2x hydraulic disc with drilled discs |
| Tyres Front | AT 24 x 8-12 |
| Tyres Rear | AT 24 x 8-12 |
| Dimensions | |
|---|---|
| Length x Width x Height | 2700 mm x 1420 mm x 1870 mm |
| Wheelbase | 1805 mm |
| Seat height | 850 mm |
| Cargo Bed Dimensions | 1100 x 930 x 235 mm |
| Operating weight | 442 kg |
| Total payload | 534 kg (driver + passenger + cargo in the back) |
| Other | |
|---|---|

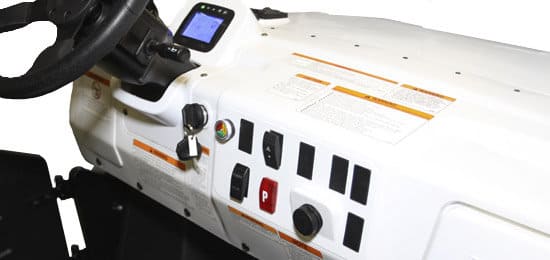

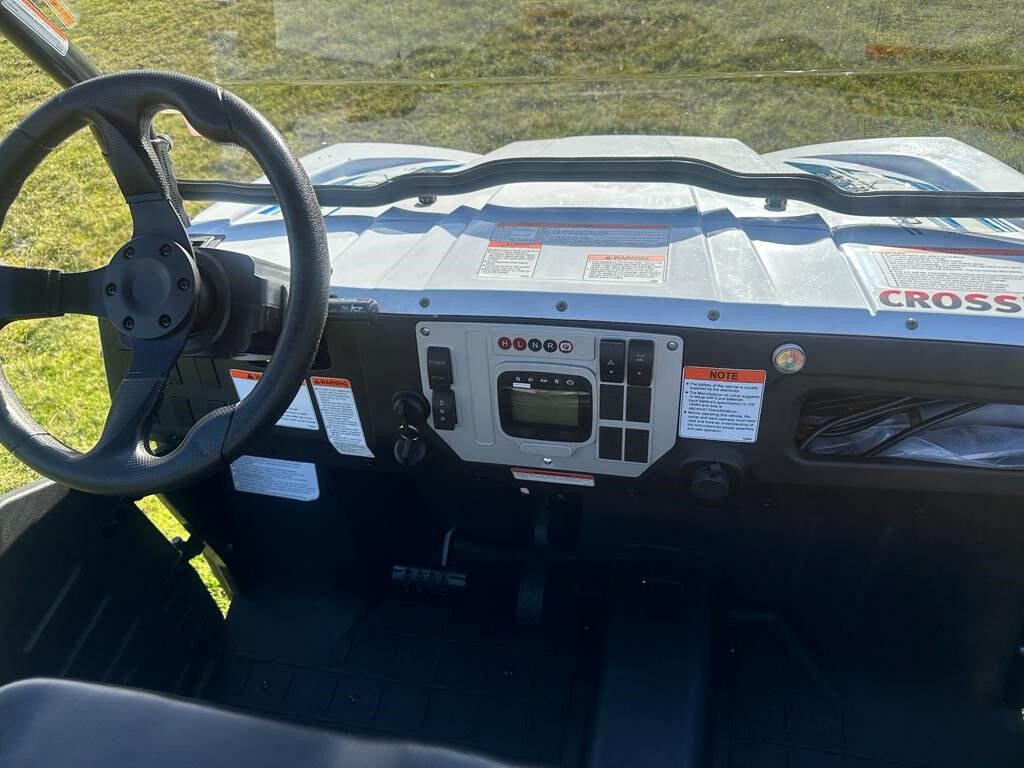

| Display | Digital multifunction display features: Speedometer Odometer Mileage counter reading Board clocks |

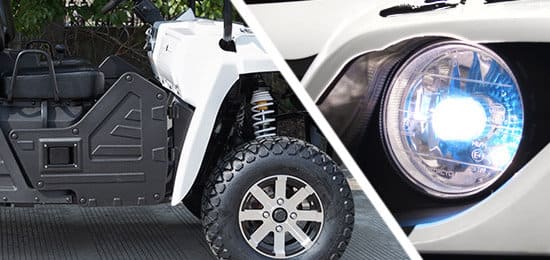

| Lights | Direction indicators, main beam LED headlights, LED tail / brake lights |
| Warranty | |
| 12 months up to 24 months* | * If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services. |
* Battery Range Disclaimer
Stated battery-range figures for Crossfire Electric UTVs (including the E-Series such as E5 and E10) are estimates only and are based on testing conducted under controlled, optimal conditions.
Actual range will vary and may be significantly reduced due to factors including, but not limited to:
- Terrain type and gradient
- Driving style, speed, and throttle application
- Payload weight, passengers, and towing loads
- Tyre type, tyre pressure, and overall vehicle condition
- Ambient temperature, weather conditions, and wind resistance
- Battery age, maintenance, and state of charge
- Frequency of stop-start operation and regenerative braking use
Stated range should be used as a general guide only, not as a guarantee of performance in all environments. Operators should plan usage with an appropriate safety buffer and avoid fully depleting the battery before recharging.
You must be logged in to post a review.
Product Enquiry

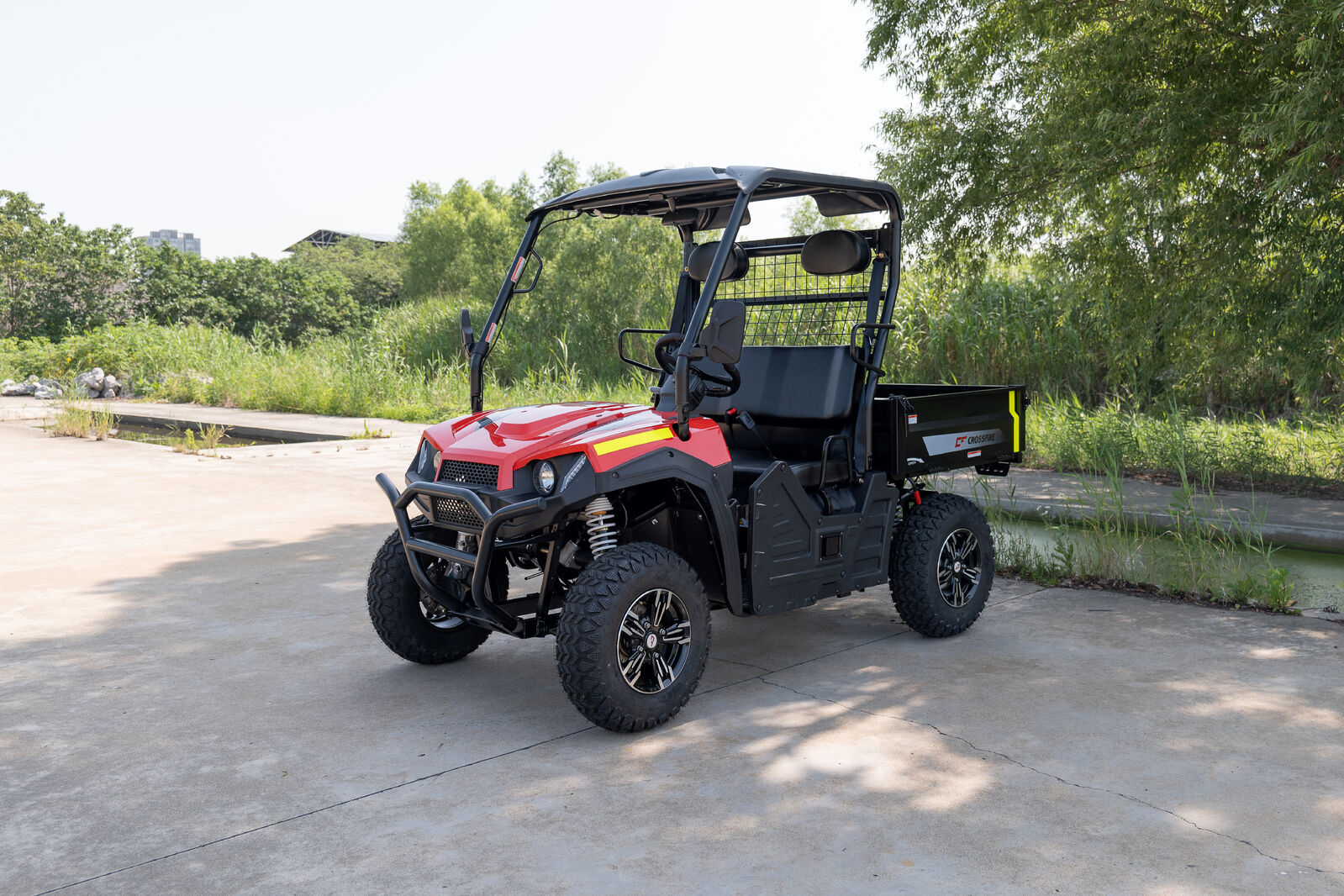

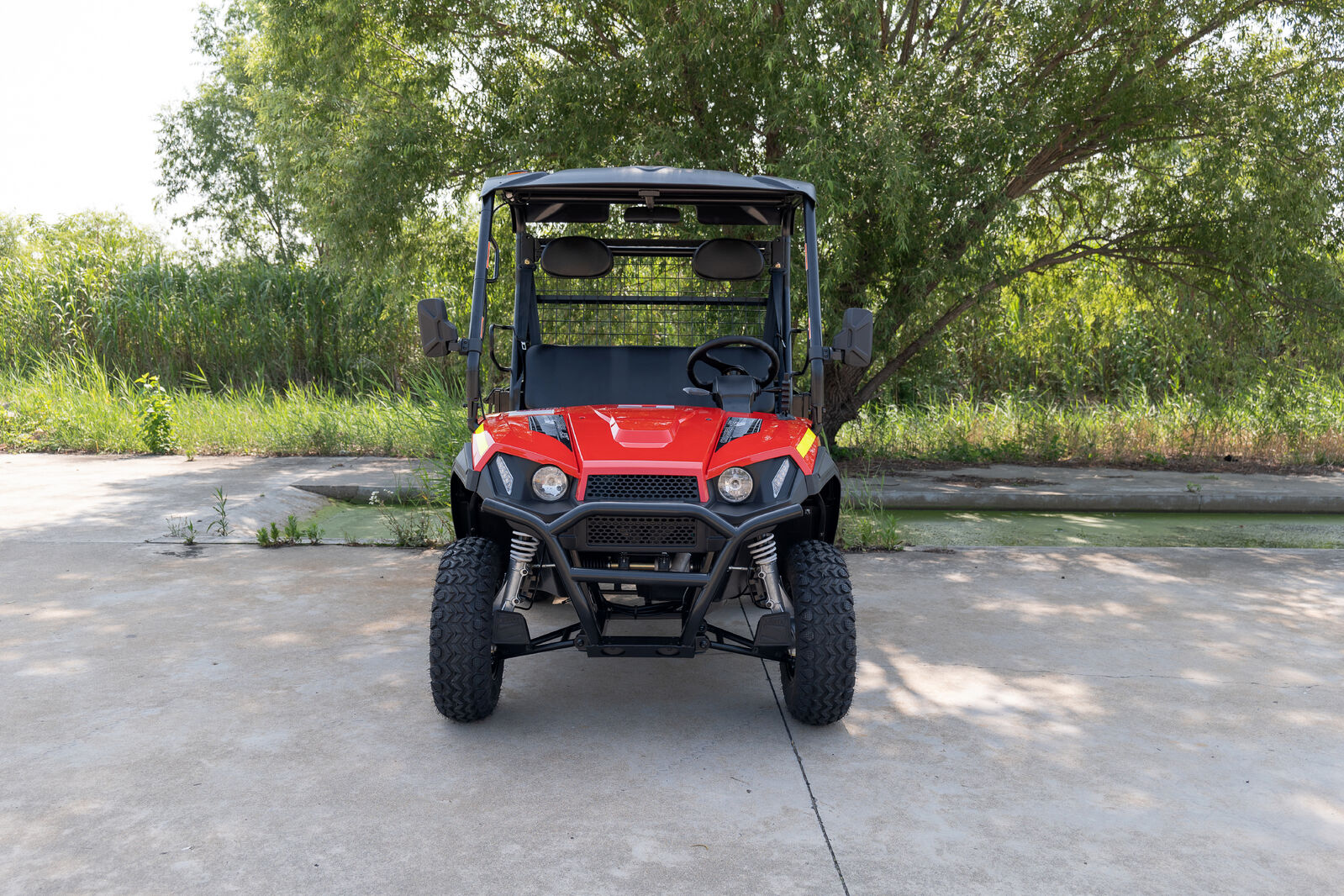

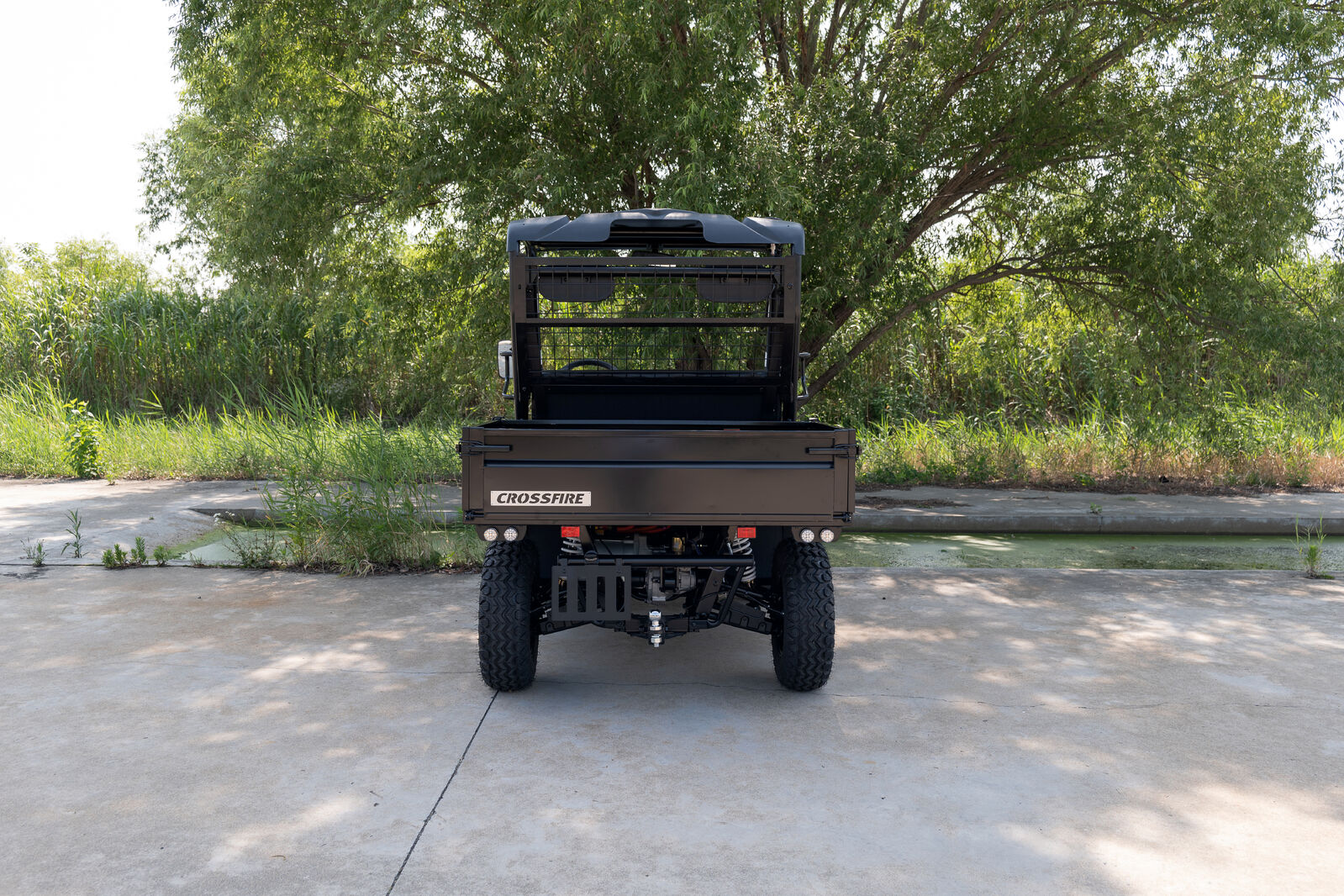

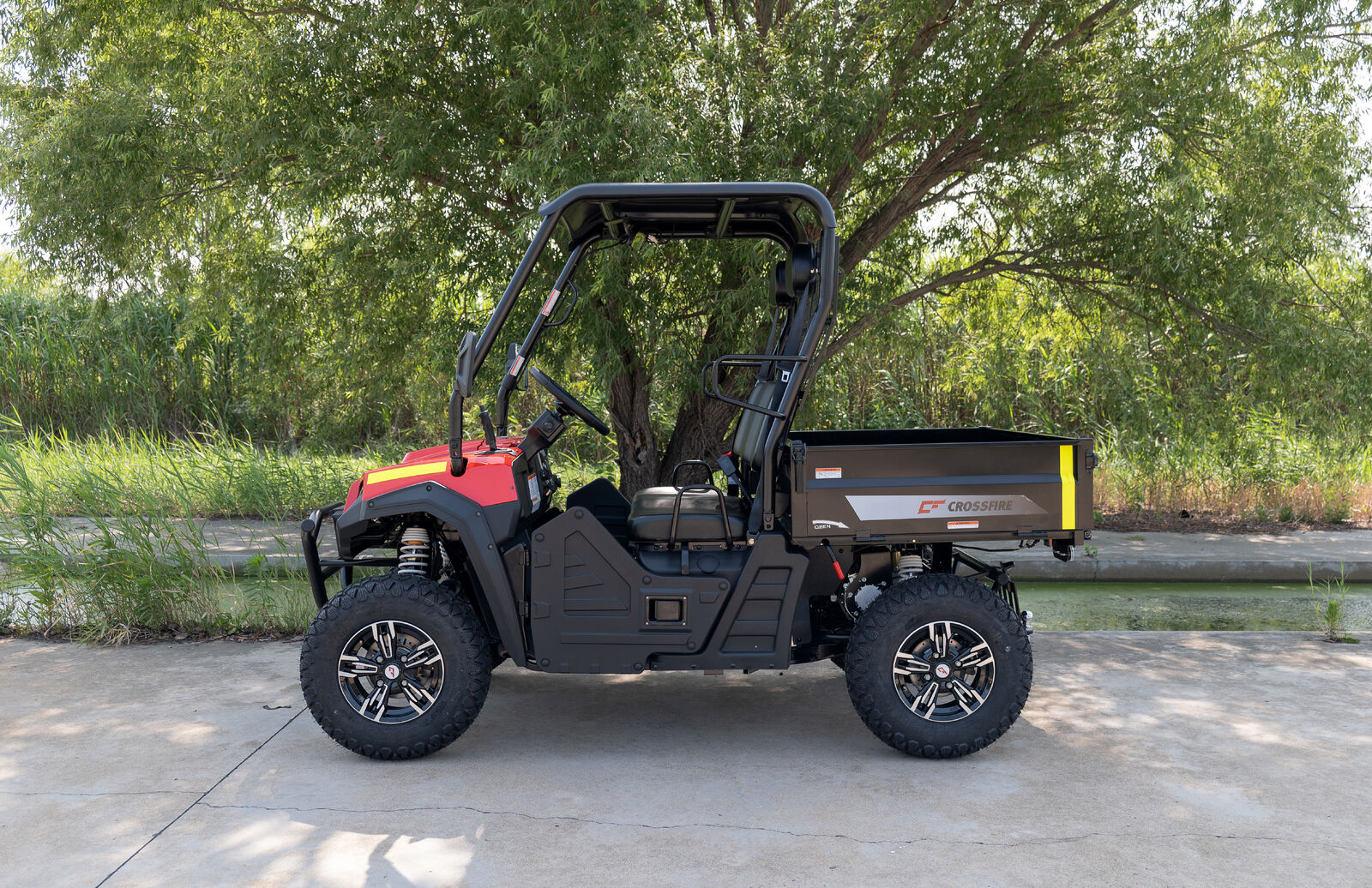

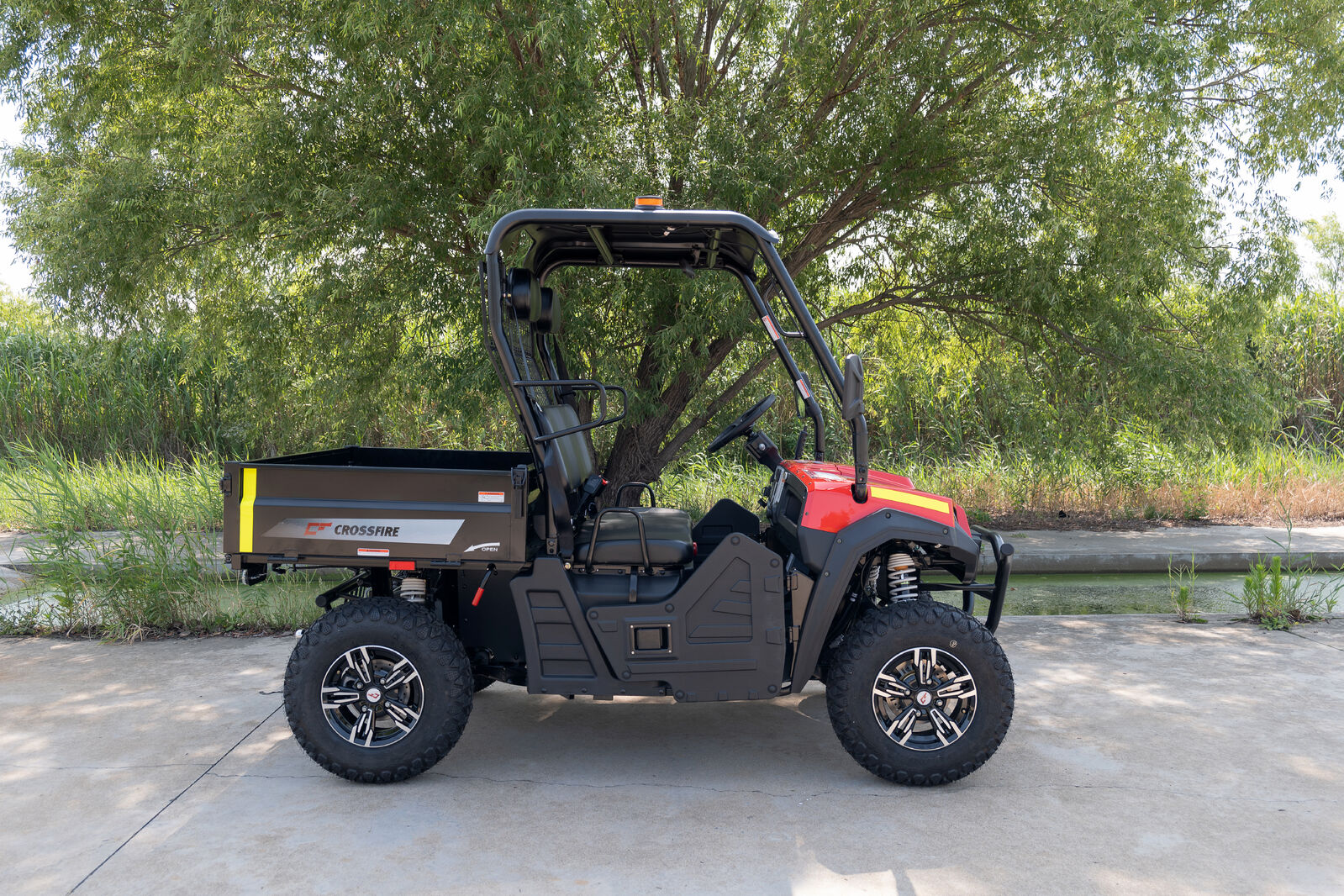

E5 Electric UTV – 2-Seater Farm & Industrial Utility Vehicle E5 Electric UTV
