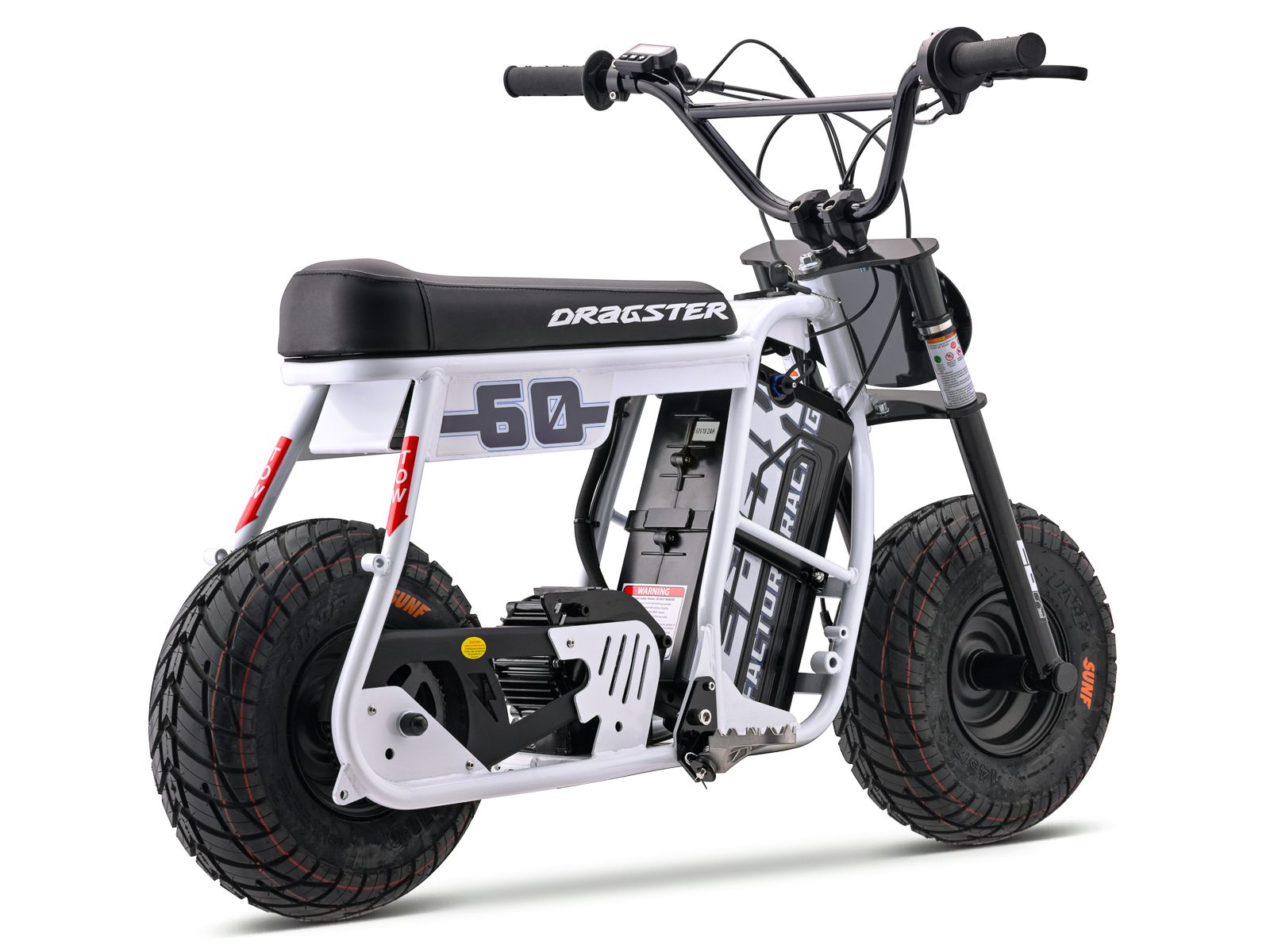

TECH
Charge time 5-6 hours
Range 21-25 miles (35-40Km)
Top speed 45mph (72Km/h)
External adjustability 3 riding modes
Frame construction High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.
Waterproof IP54
Other USB A + C charging port
Wheelbase 882mm
Ground clearance 120mm
Seat height 585mm
Bar height 810mm
Bike Weight 42.5kg (94lbs)
Our Product
Additional information
| Weight | 55 kg |
|---|---|
| Dimensions | 120 × 33 × 72 cm |
| Color | Black, White |
SPECS
Frame type Full duplex
Fork Rigid High Tensile
Bar Risers Cast alloy 36mm rise Ø22.2
Front wheel size 6″
Rear wheel size 6″
Front brake Hyraulic Disc (Right lever) e-moto brakes
Front disc Wavey rotor 160mm, 6 bolt 48mm BCD
Rear brake Hyraulic Disc (Left lever) e-moto brakes
Rear disc Wavey rotor 160mm, 6 bolt 48mm BCD
Front tyre 145/70-6 SUNF fast SM tyres
Rear tyre 145/70-6 SUNF fast SM tyres
Chain 219H 108L
Gearing Front 10T, Rear 55T
Max load 100kg
Handlebar High Tensile 2 Piece 29.5″ x 7″
Seat Dragster seat
Motor 60V EBX PMSM motor with temp feedback and encoder
Rated Power 3.3KW
Peak power 3.7KW (5hp)
Max RPM 7,500
Battery 60v 18.2Ah battery 18,600 cells with QS8 connector
Controller 80 Amp fardriver controller
Throttle SURRON style full twist
Display TFT odometer display with 3 speed modes and fault code analysis software
Connectors Automotive connectors with sealed wiring harness
Charger AC 100-240V, Output: 67.2V, 3A
| Engine CC | NA |
|---|---|
| Watts | NA |
| Item Height | 126 |
| Item Width | 38 |
| Item Length | 67 |
| Item Weight | 58 |
Warranty Coverage:
Penrith Pit Bike extends the following parts-only warranty, commencing from the original retail purchase date. Given that the bike is delivered in a crate, it is imperative to have the bike PDI’d by a qualified motorcycle mechanic. Failure to adhere to this prerequisite will result in the nullification of the warranty associated with the bike. To initiate the warranty claim, a copy of the bike’s Pre-Delivery Inspection (PDI) must be provided.
Battery: – Coverage: 3 months from the date of purchase.Penrith Pit Bike guarantees the battery, encompassing any defects in materials and workmanship. In the event of battery failure within the stipulated warranty period, a replacement will be provided (All depleted batteries should be returned to Penrith Pit Bike for recycling and at your cost). Diagnosis of a fault must be conducted by an authorized EBOX dealer.
Batteries will not be eligible for coverage if brake kill switches are removed or if the instructions outlined in the EBOX user manual are not adhered to.
Specifically, during periods of vehicle inactivity, it is essential to recharge the battery at least once a month until regular use is reinstated. Failure to turn off the power switch or neglecting to charge the product for an extended duration may result in the battery reaching a state where it is unable to retain a charge.
2 – Motor, Controller, and Other Components: – Coverage: 3 months from the date of purchase.
Penrith Pit Bike provides a warranty for the motor, controller, and all other electric bike components, excluding wear and tear parts. This warranty covers defects in materials and workmanship. In the event of a failure of any of these components within the specified trade warranty period, replacement parts will be sent (once returned) to be fitted by a qualified mechanic.
Warranty invalid if EBOX modified or upgraded in any way. This includes but not exclusive to:
Disconnecting brake switches –Bypassing BMS-Battery voltage changes or battery changes-Motor/controller changes-Other electrical modifications
- Mechanical hardware changes suspension etc.
Exclusions: This trade warranty does not cover the following wear and tear parts unless there is a factory defect:
- Tyres
- Brake pads
- Brake discs
- Chain
- Sprocket
- Plastics
- Wheels
- Bearings
- Suspension
- Grips
- Seat
Damage caused by water exposure, including but not limited to submersion, immersion, or exposure to excessive moisture, is explicitly excluded from warranty coverage. This includes damage resulting from riding in heavy rain, submergence in bodies of water, or exposure to water during cleaning or maintenance.
