| Engine CC | NA |
|---|---|
| Watts | NA |
| Item Height | 126 |
| Item Width | 38 |
| Item Length | 67 |
| Item Weight | 58 |
Our Product
Sale!

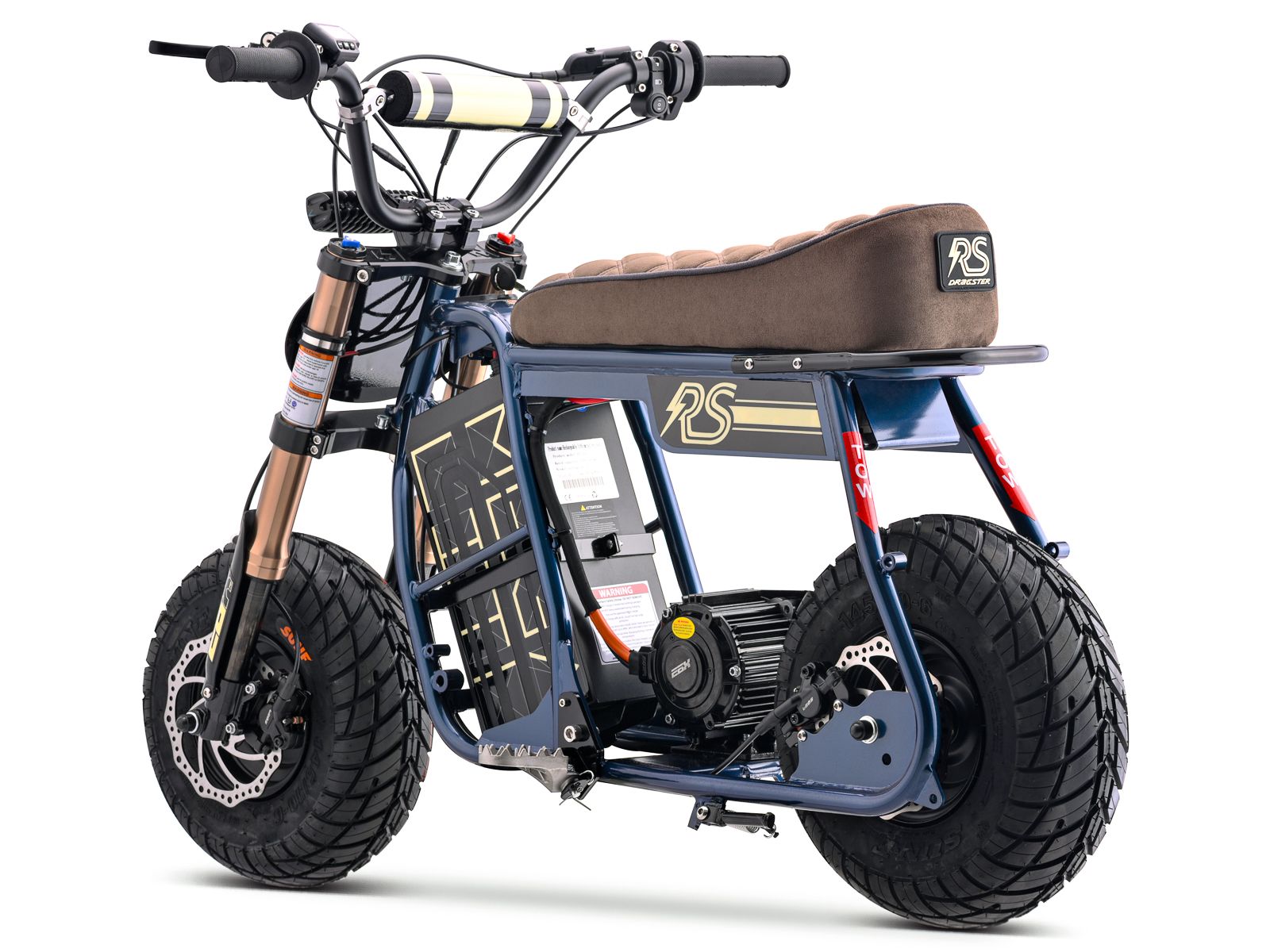

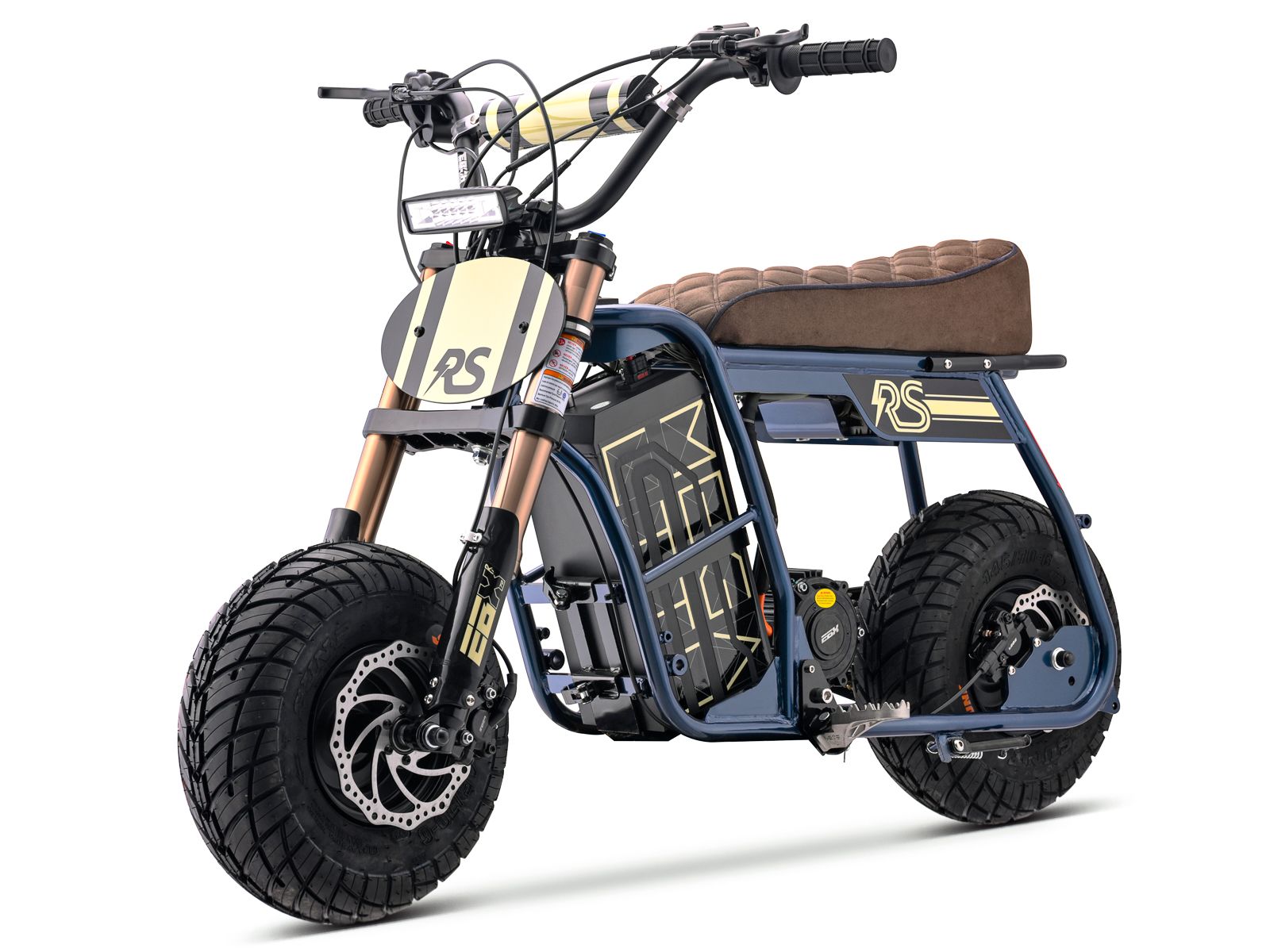

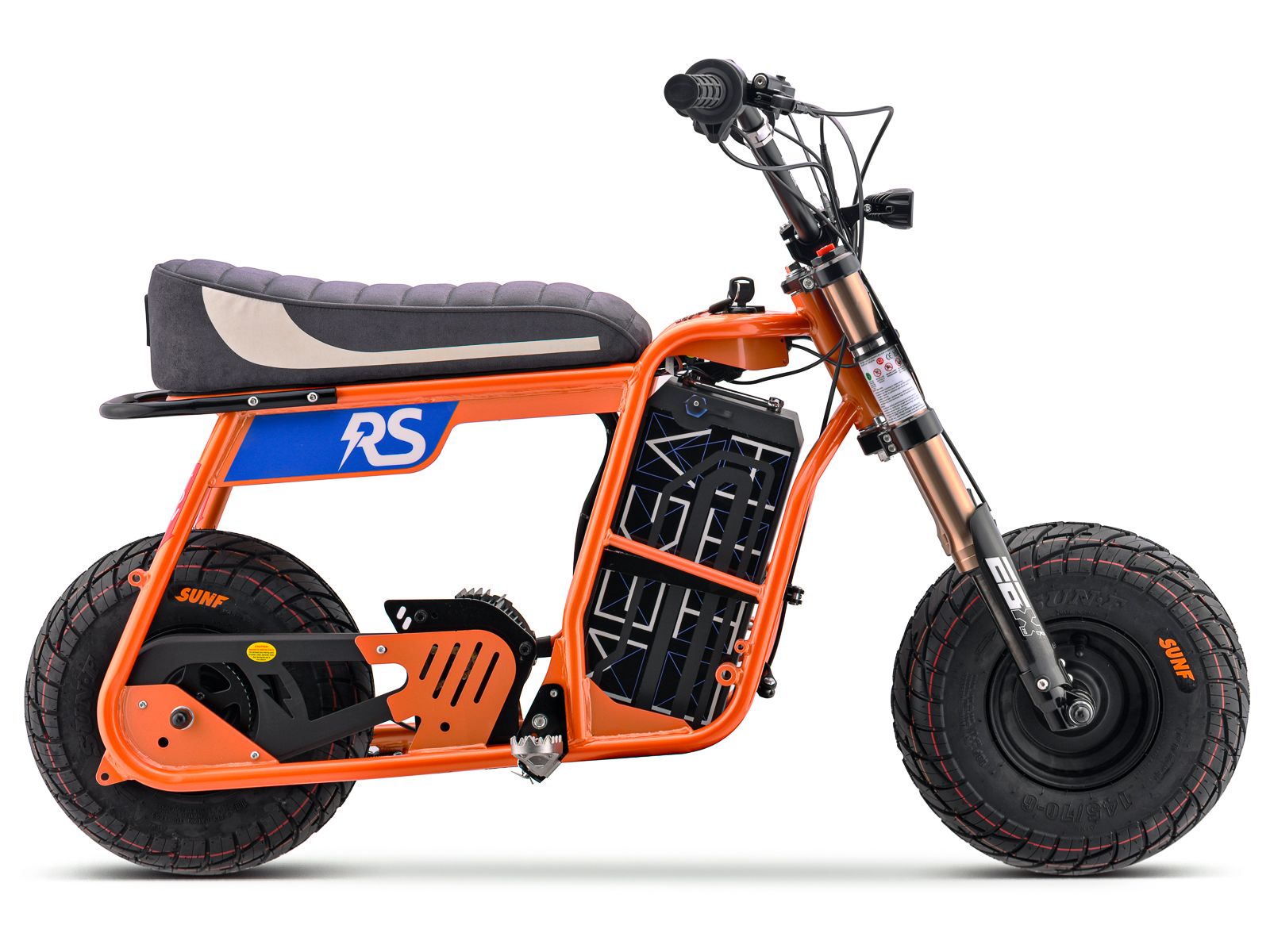

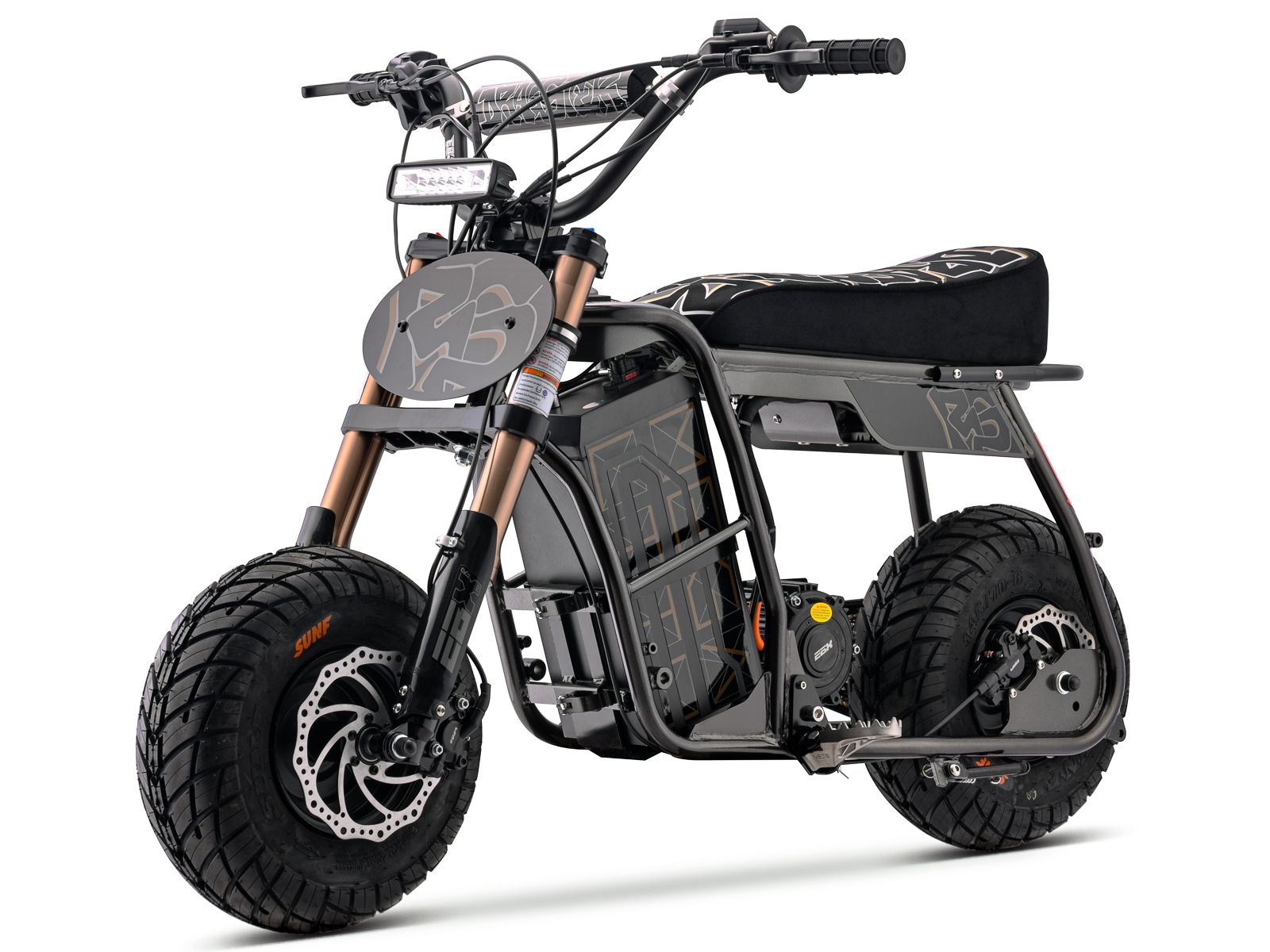

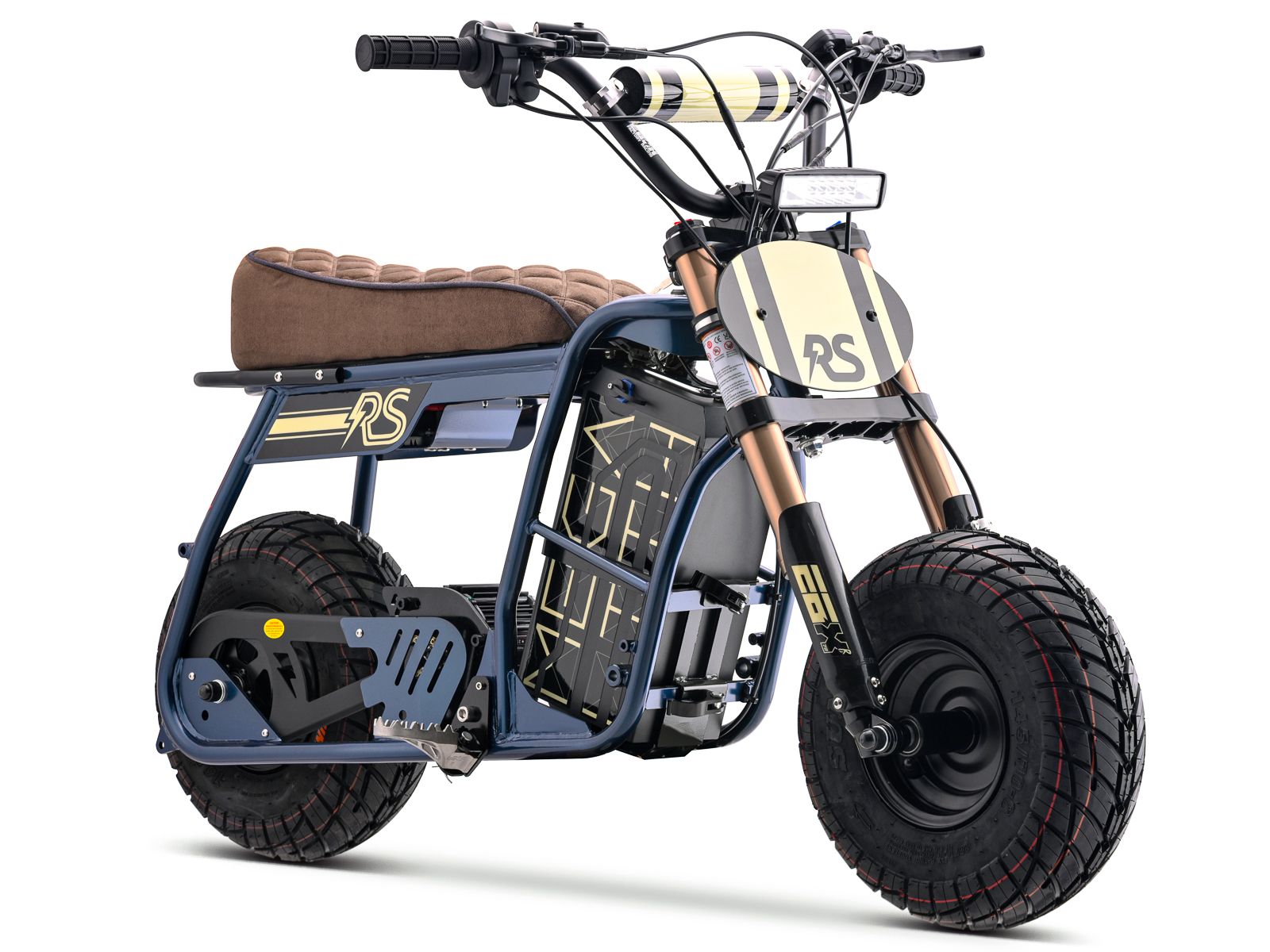

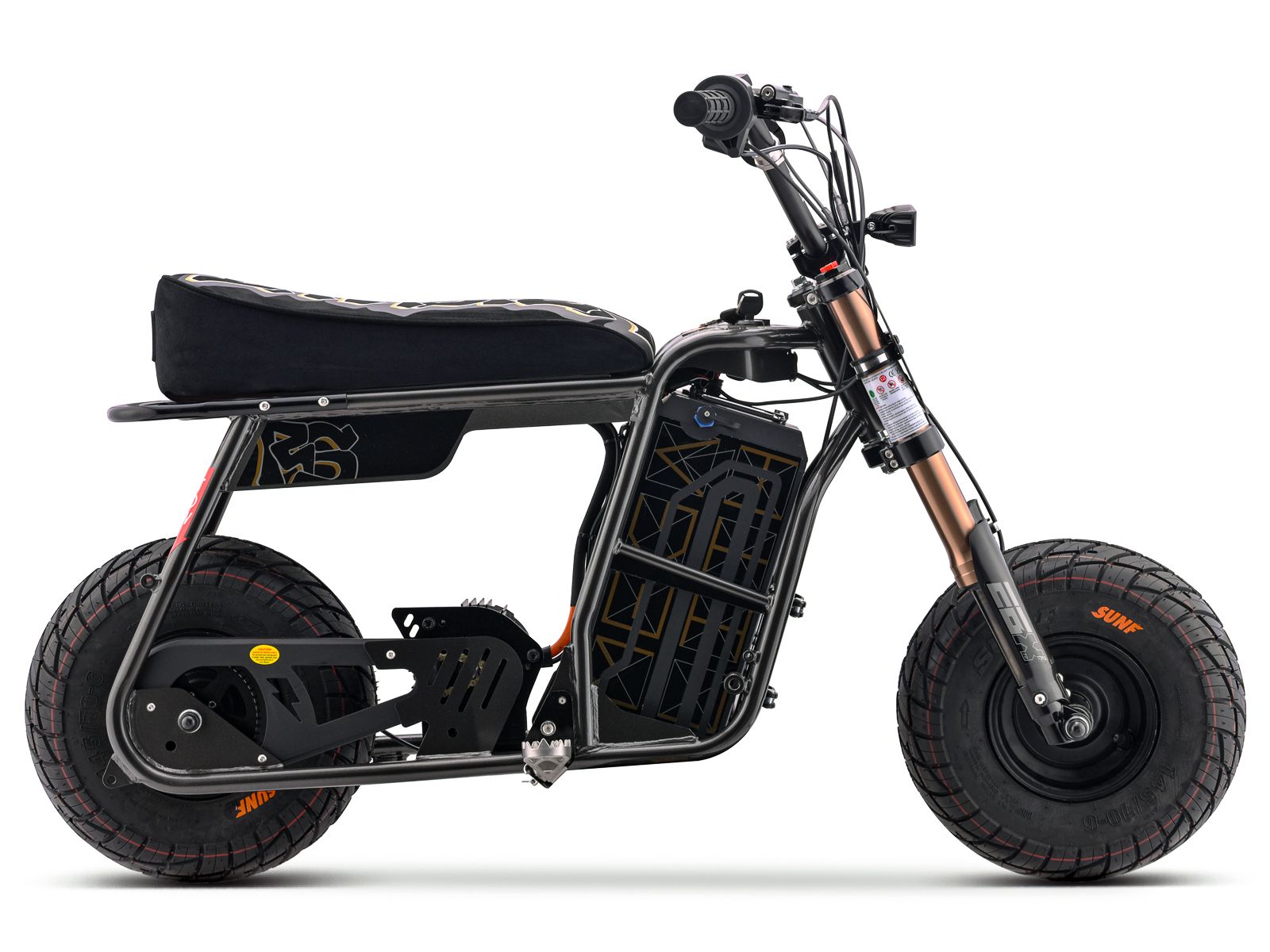

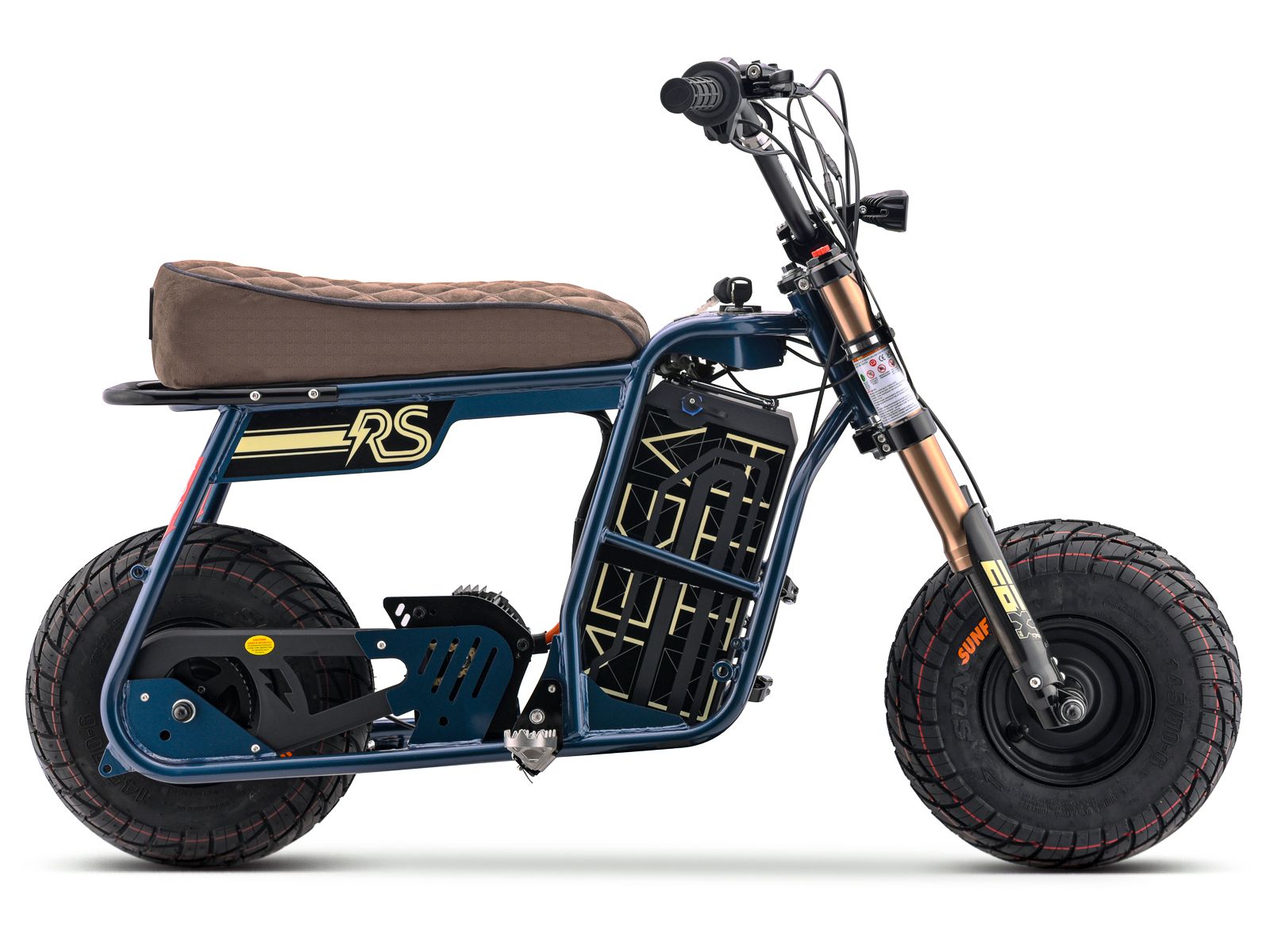

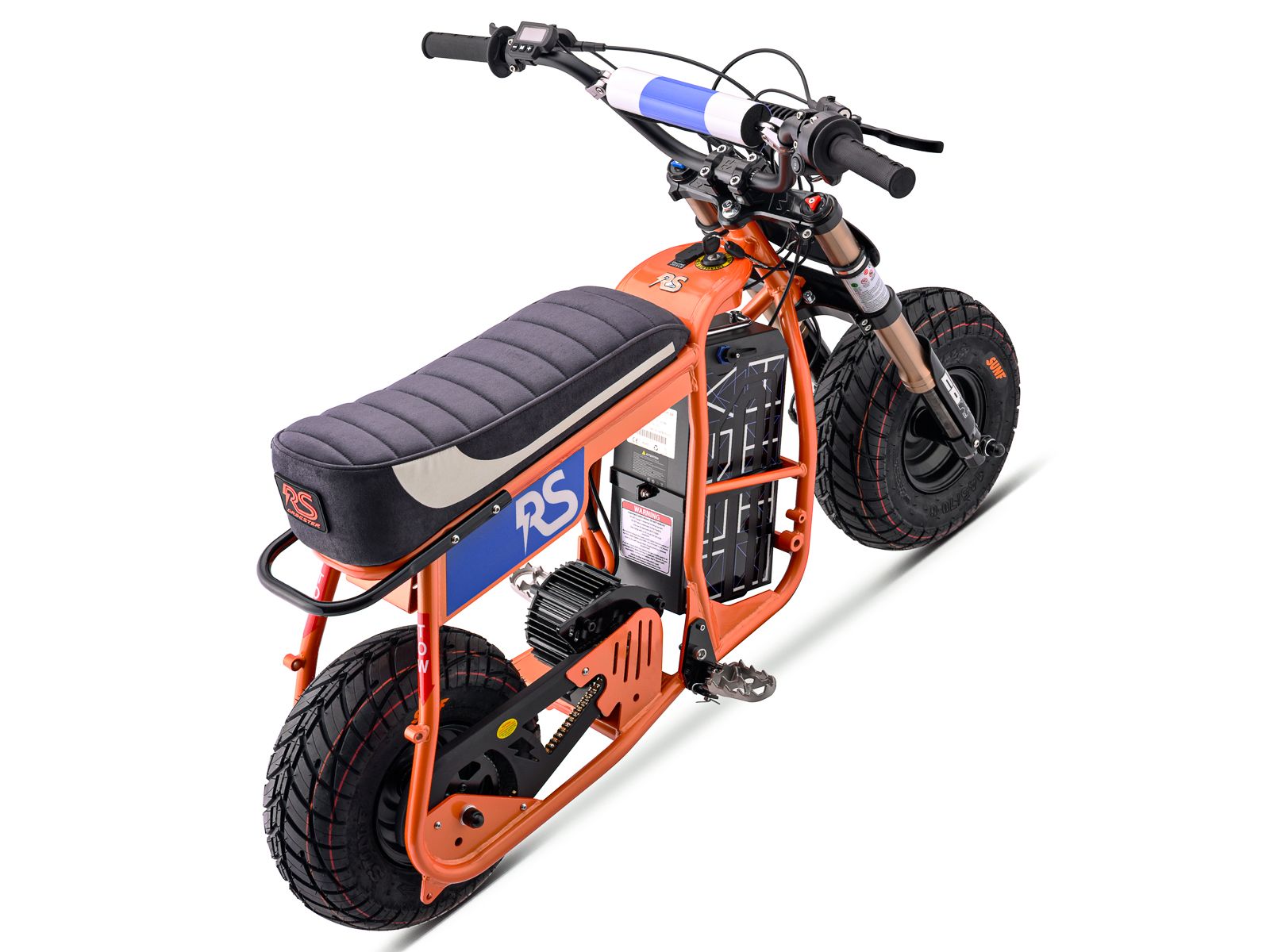

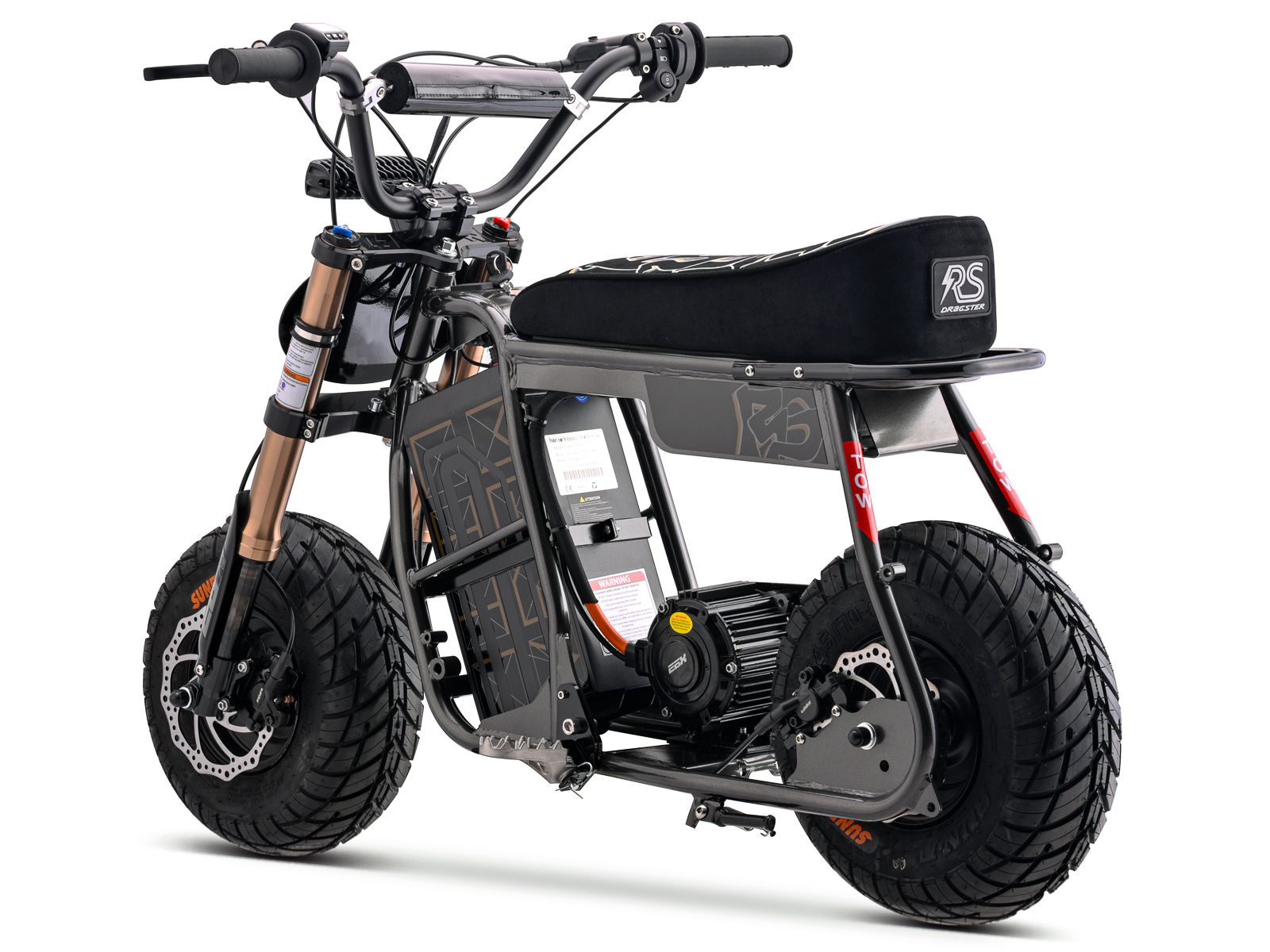

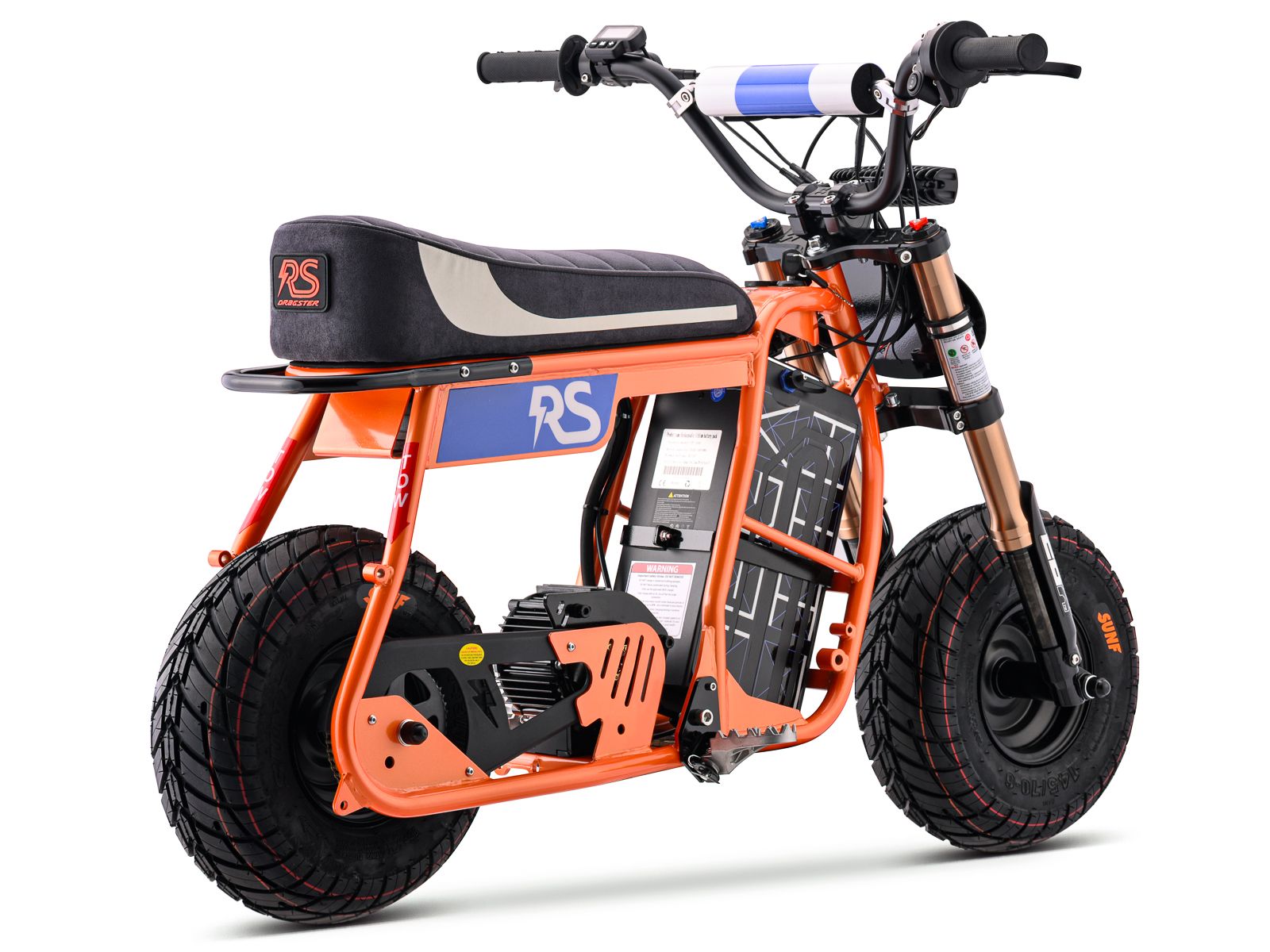

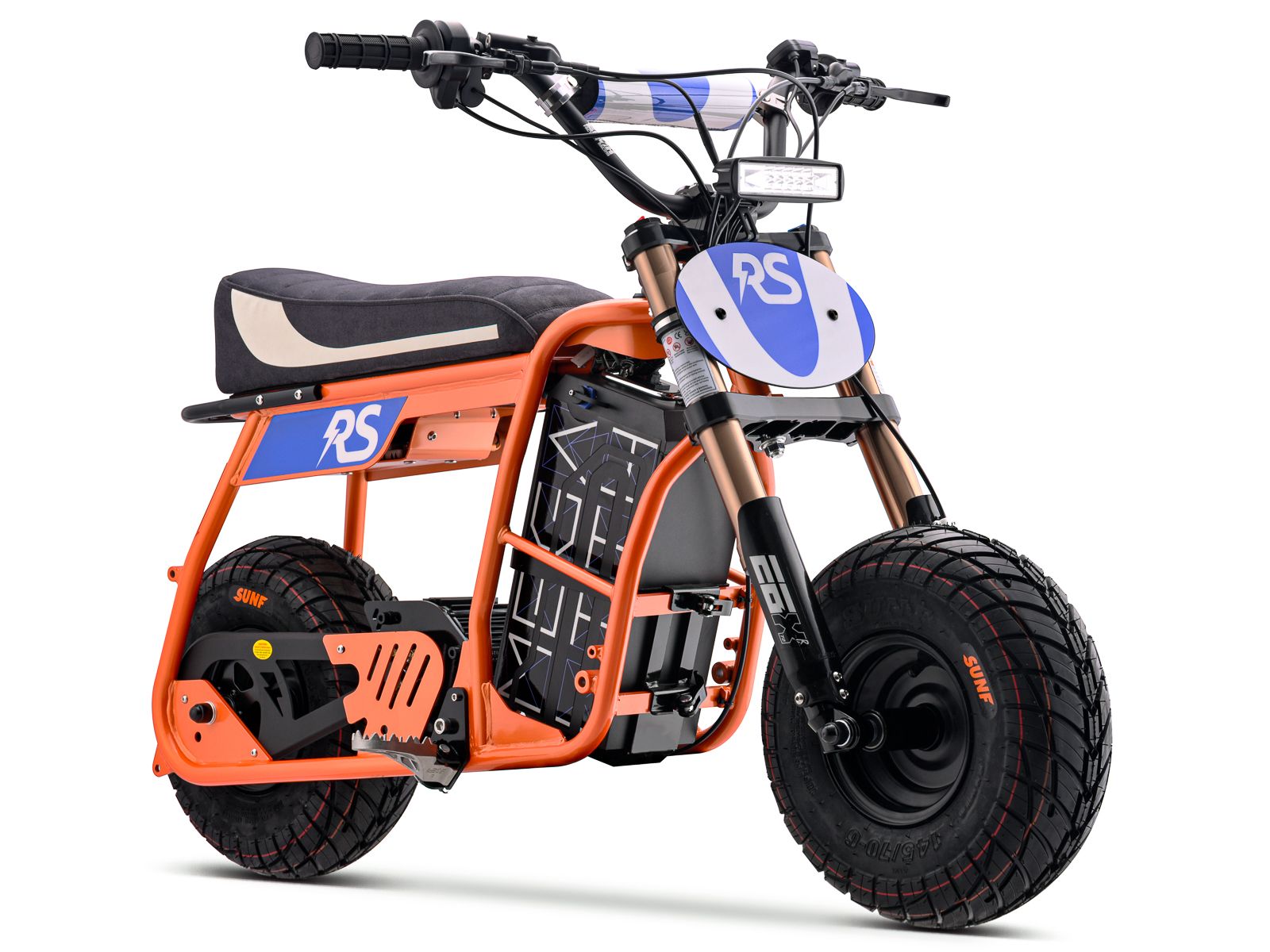

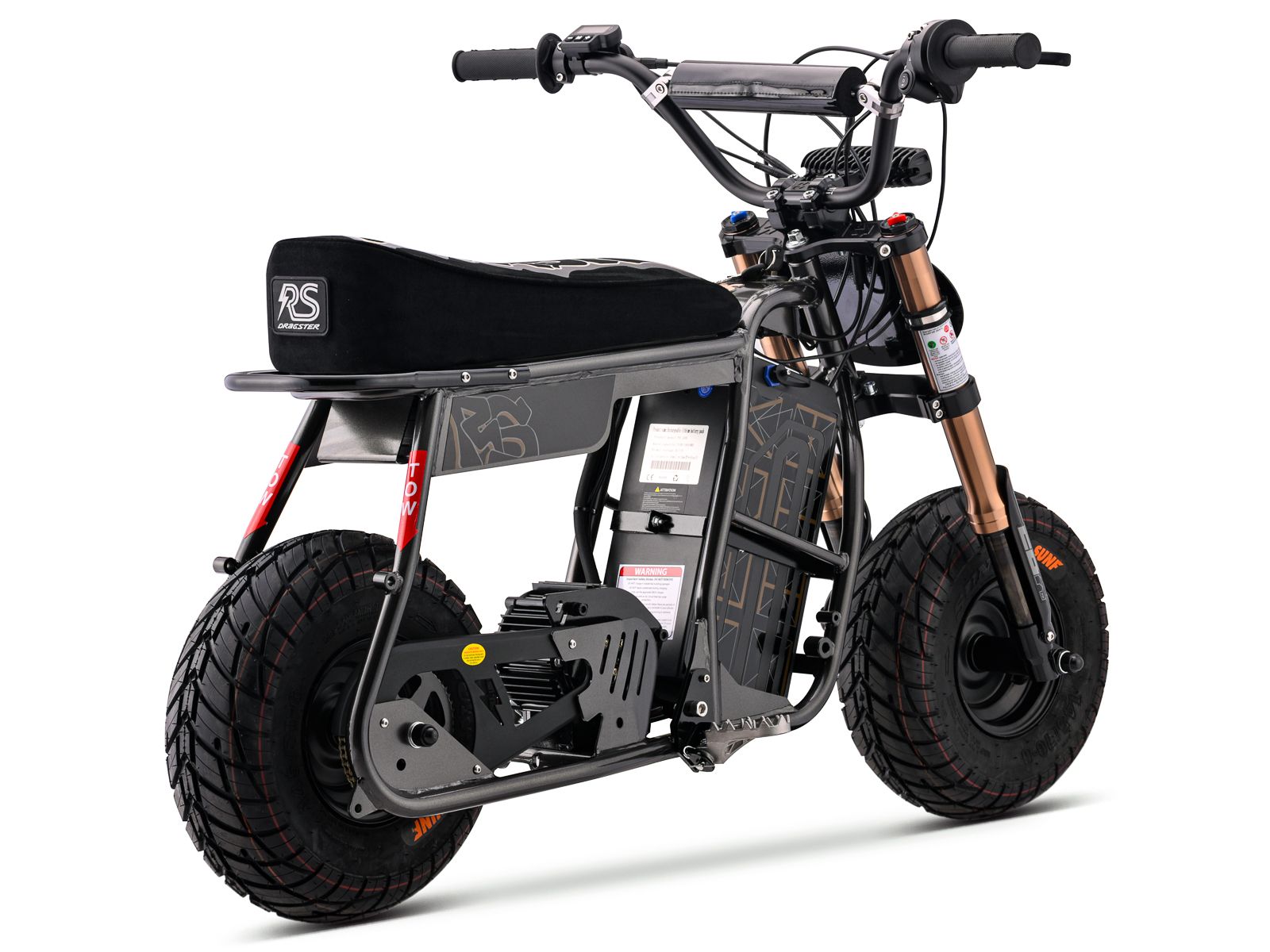

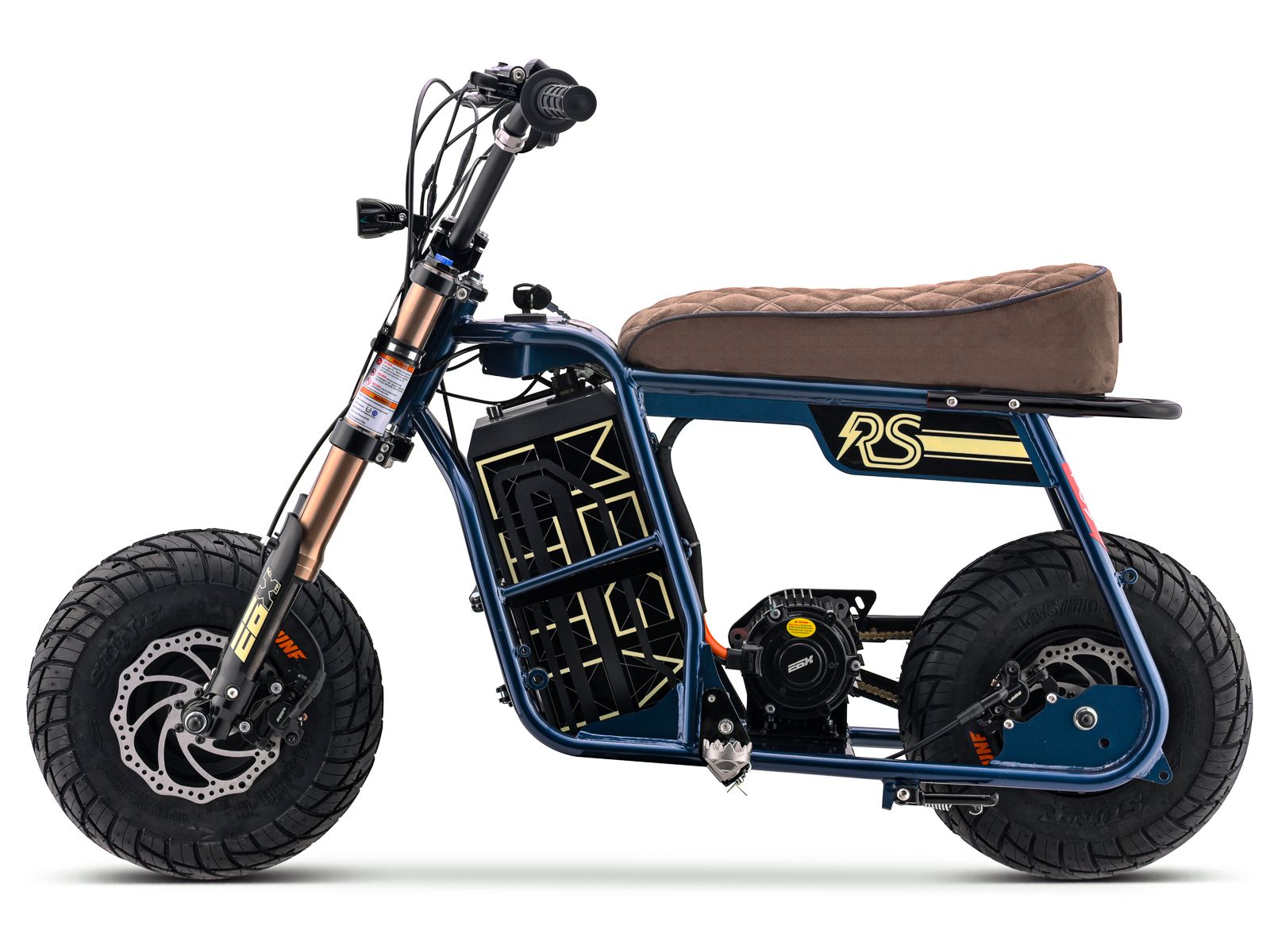

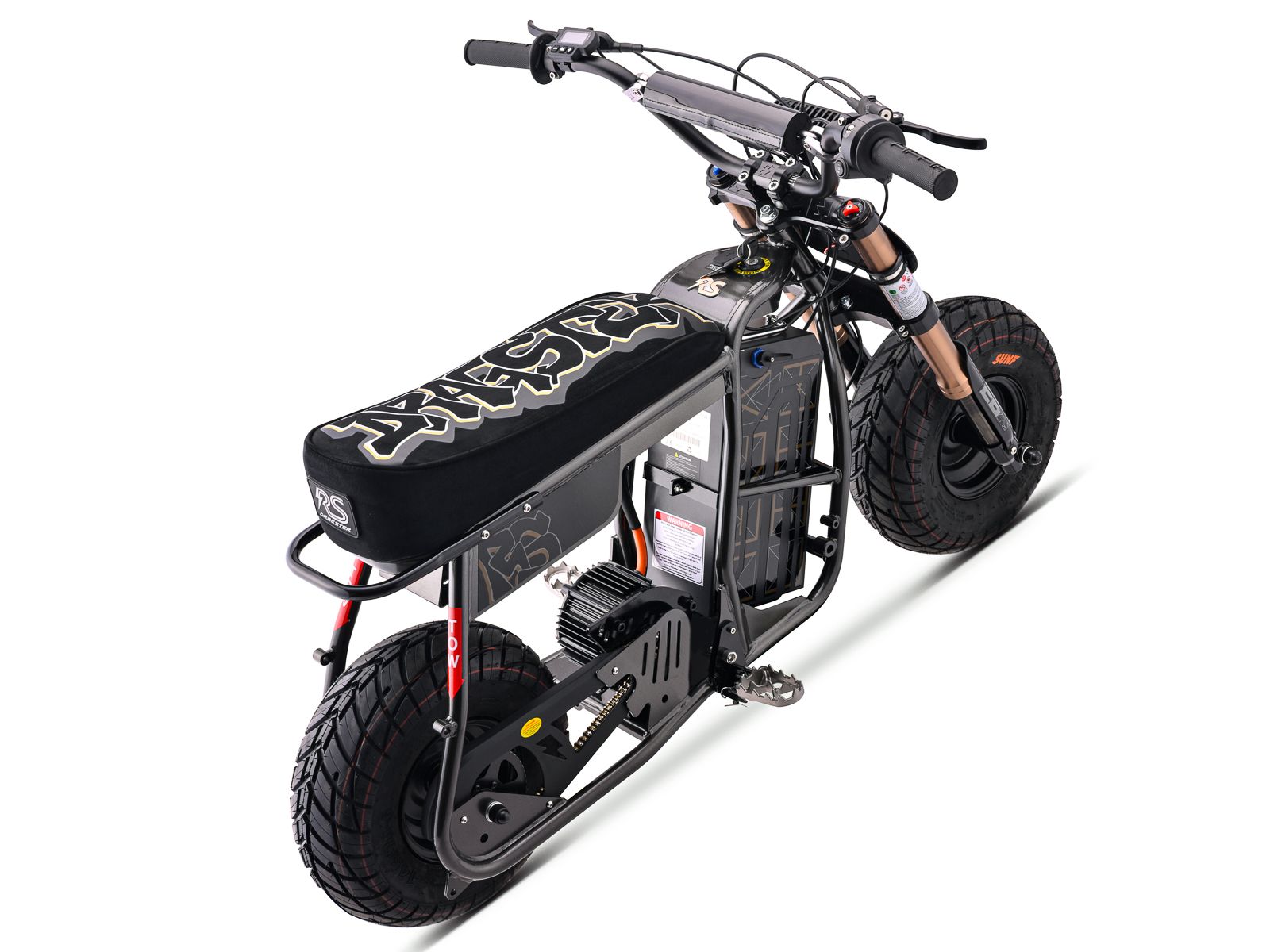

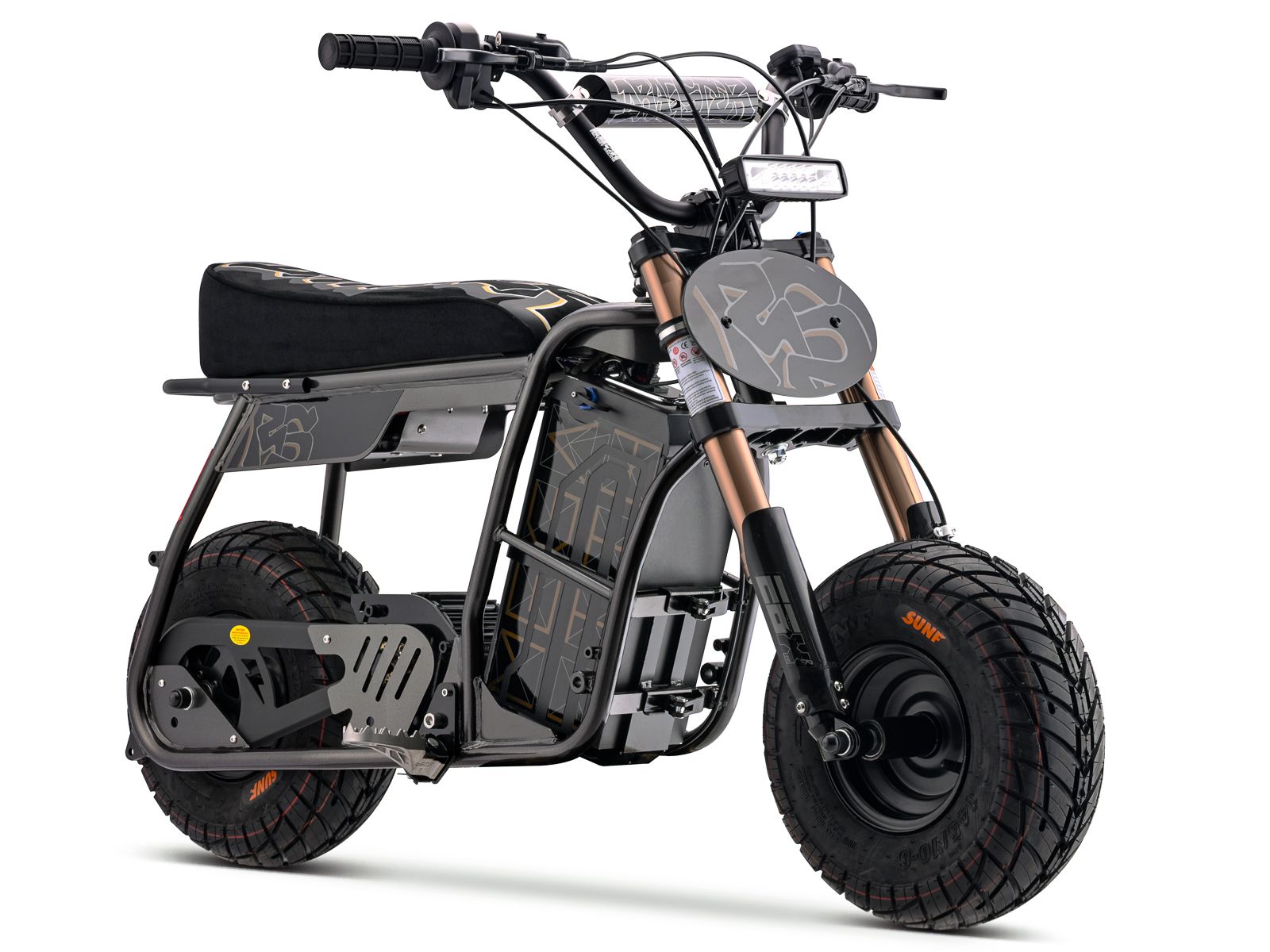

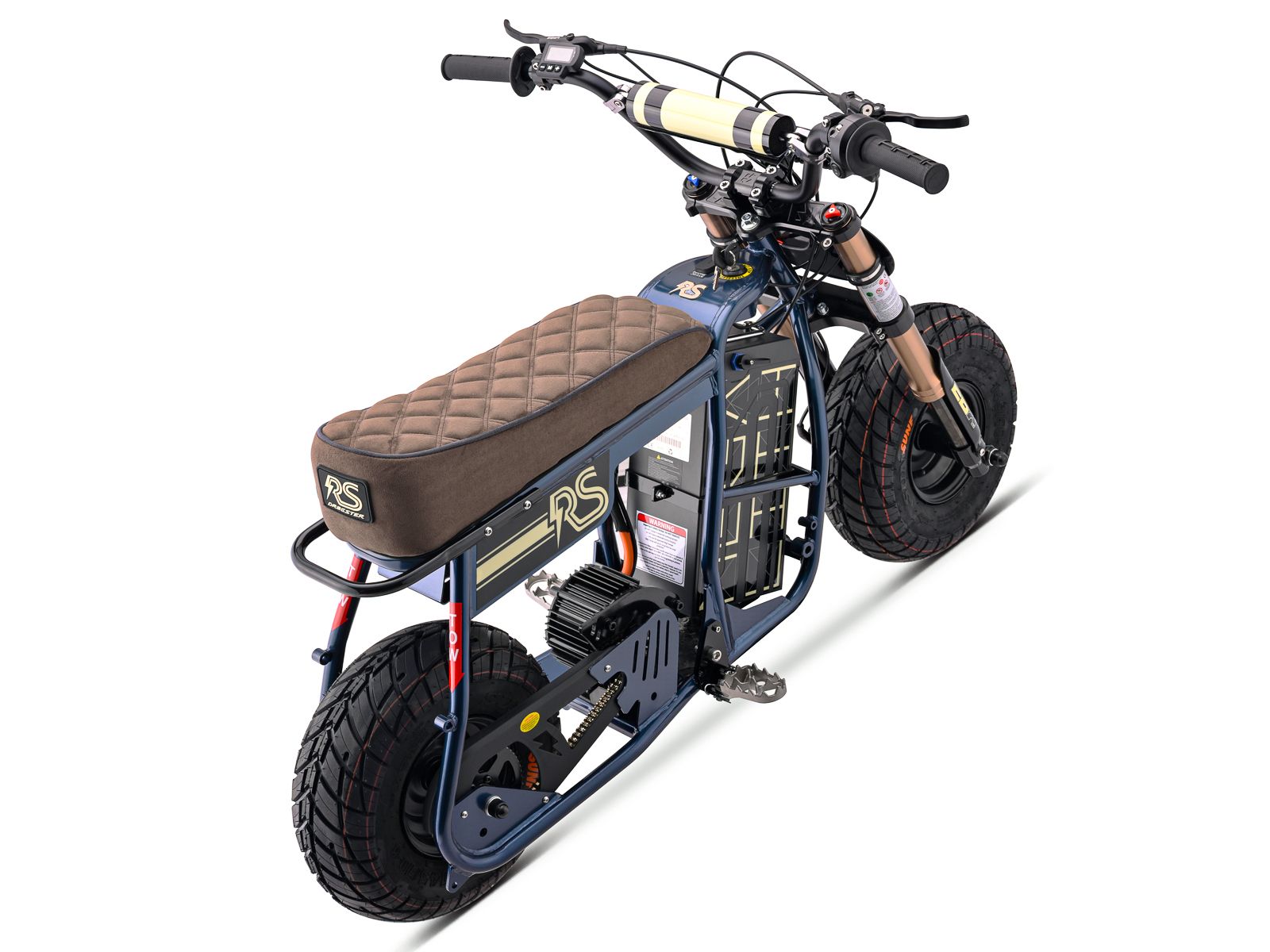

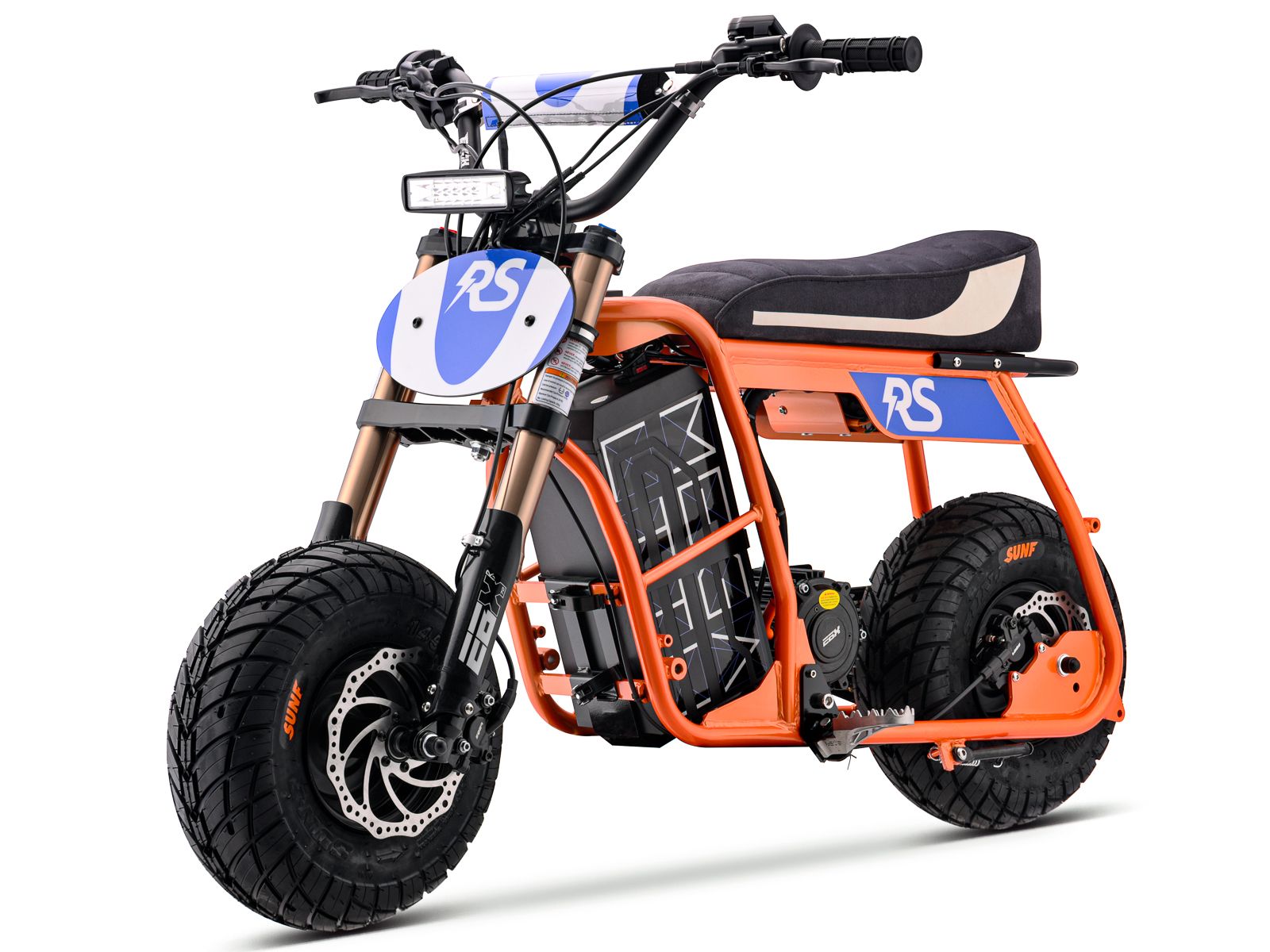

DRAGSTER EBX 72RS 54KW 5400W 72V 25Ah – Latest and Greatest!!!! be quick
- Assembly 200.00, Dragster, Electric-MOTO
- Description:
THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets. . SPECS Frame type Full duplex Fork 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions Fork Clamps Billet 6061 T6 CNC machined triple clamps Bar Risers 6061 T6 CNC machined 35mm rise Ø22.2 Front wheel size 6" Rear wheel size 6" Front brake Hyraulic Disc (Right lever) e-moto brakes Front disc Wavey rotor 180mm, 6 bolt 48mm BCD Rear brake Hyraulic Disc (Left lever) e-moto brakes Rear disc Wavey rotor 160mm, 6 bolt 48mm BCD Front tyre 145/70-6 SUNF fast SM tyres Rear tyre 145/70-6 SUNF fast SM tyres Chain Uprated performance gold 219H 108L Gearing Front 10T, Rear 55T Max load 100kg Handlebar 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad Seat Luxurious suede RS wedge seat Motor 72V EBX PMSM motor with temp feedback and encoder Rated Power 5.4KW Peak power 6.3KW (8.5hp) Max RPM 9,000 Battery New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch Controller 80 Amp fardriver controller Throttle SURRON style full twist Display TFT odometer display with 3 speed modes and fault code analysis software Connectors Automotive connectors with sealed wiring harness Charger AC 100-240V, Output: 84V, 6A Light LED headlight and switch TECH Charge time 4-5 hours Range 28-31 miles (45-50Km) Top speed 56mph (88Km/h) External adjustability 3 riding modes Frame construction High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. Waterproof IP54 Other USB A + C charging port Wheelbase 910mm Ground clearance 120mm Seat height 610mm Bar height 825mm Bike Weight 49kg (108lbs)
- Part No :
Original price was: $4,200.00.$3,200.00Current price is: $3,200.00.
THE EBX Dragster is FINALLY HERE! In a world full of limp, slow, plastic failures, comes a truly HARDCORE electric minibike with more steeze than should be legal in such a miniature package. Featuring insane top speeds of up to 55 mph, the EBX is now delivered with a SERIOUS safety warning: Do Not Ride if You are Easily Frightened. Choose from 3 ballistic powertrains and multiple mind-blowing colourways. Fully re-engineered and reconsidered with a temperature protected PMSM encoder motor, 80 Amp Fardriver controller, bigger batteries, bigger brakes and 3-mode smart TFT colour display. Other exciting features are available such as bronze inverted suspension forks, an integrated LED headlight and luxury suede printed seats. The EBX range firmly cements the Dragster as the “Ultimate Wheelie Weapon” and King of the streets. .
SPECS
Frame type Full duplex
Fork 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions
Fork Clamps Billet 6061 T6 CNC machined triple clamps
Bar Risers 6061 T6 CNC machined 35mm rise Ø22.2
Front wheel size 6″
Rear wheel size 6″
Front brake Hyraulic Disc (Right lever) e-moto brakes
Front disc Wavey rotor 180mm, 6 bolt 48mm BCD
Rear brake Hyraulic Disc (Left lever) e-moto brakes
Rear disc Wavey rotor 160mm, 6 bolt 48mm BCD
Front tyre 145/70-6 SUNF fast SM tyres
Rear tyre 145/70-6 SUNF fast SM tyres
Chain Uprated performance gold 219H 108L
Gearing Front 10T, Rear 55T
Max load 100kg
Handlebar 6061 T6 29.5″ x 7″, with 3 piece crossbar and bar pad
Seat Luxurious suede RS wedge seat
Motor 72V EBX PMSM motor with temp feedback and encoder
Rated Power 5.4KW
Peak power 6.3KW (8.5hp)
Max RPM 9,000
Battery New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch
Controller 80 Amp fardriver controller
Throttle SURRON style full twist
Display TFT odometer display with 3 speed modes and fault code analysis software
Connectors Automotive connectors with sealed wiring harness
Charger AC 100-240V, Output: 84V, 6A
Light LED headlight and switch
TECH
Charge time 4-5 hours
Range 28-31 miles (45-50Km)
Top speed 56mph (88Km/h)
External adjustability 3 riding modes
Frame construction High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.
Waterproof IP54
Other USB A + C charging port
Wheelbase 910mm
Ground clearance 120mm
Seat height 610mm
Bar height 825mm
Bike Weight 49kg (108lbs)
Note: All prices are GST inclusive but exclude freight, and assembly charges. Please call your dealer to attain full price.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Color | Black, Navy, Orange |
