Description

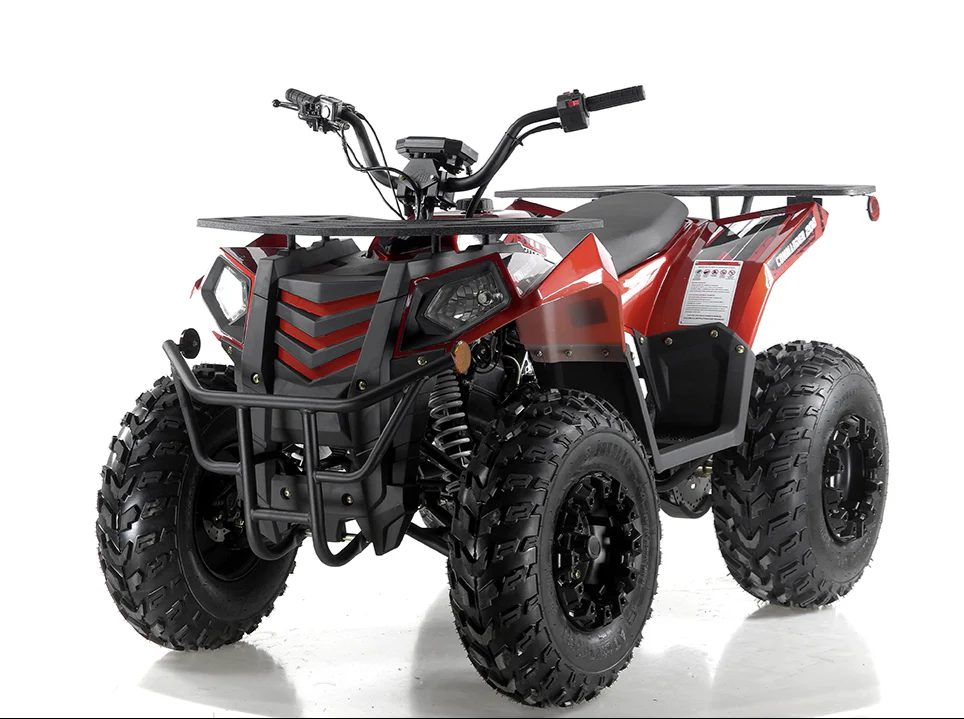

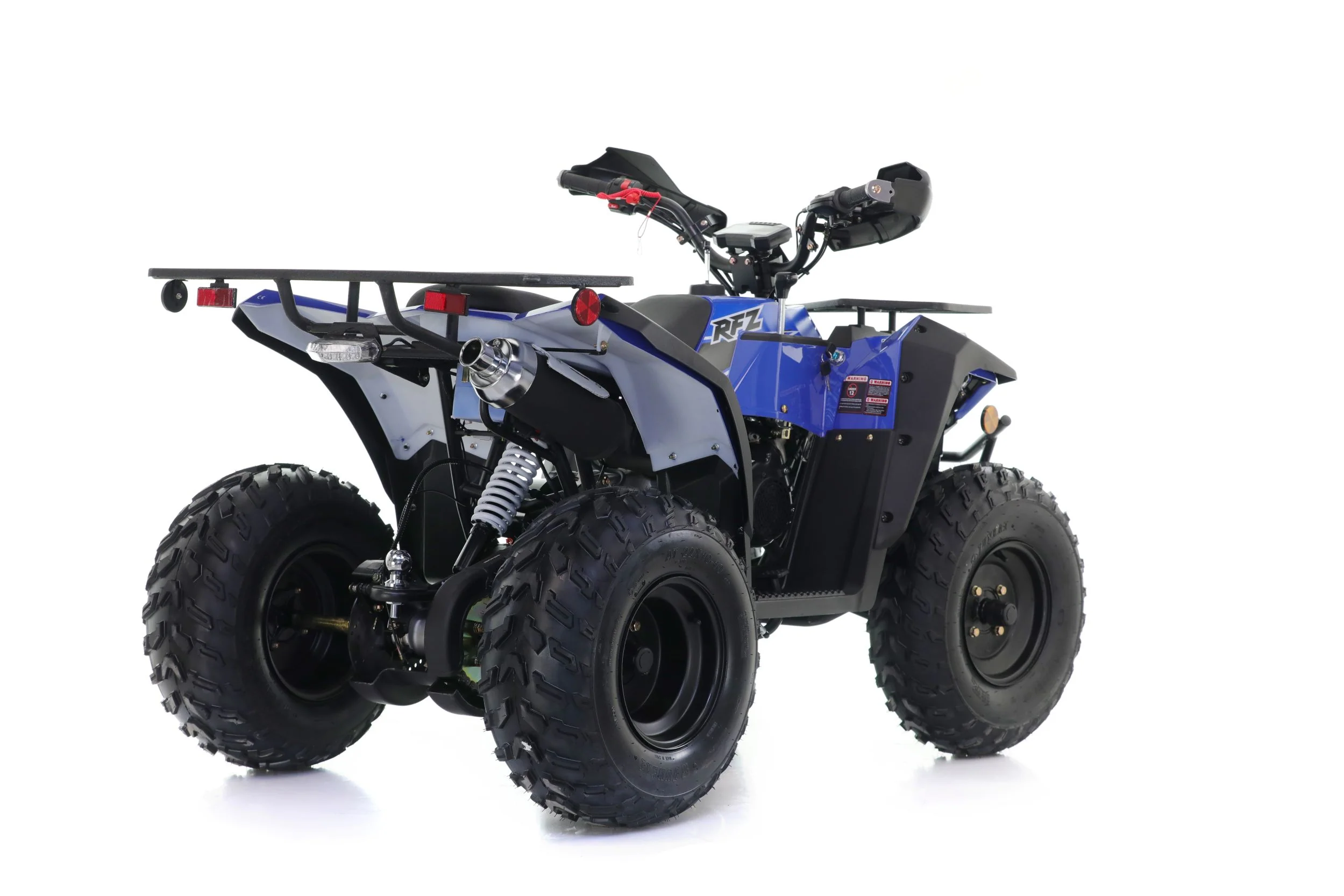

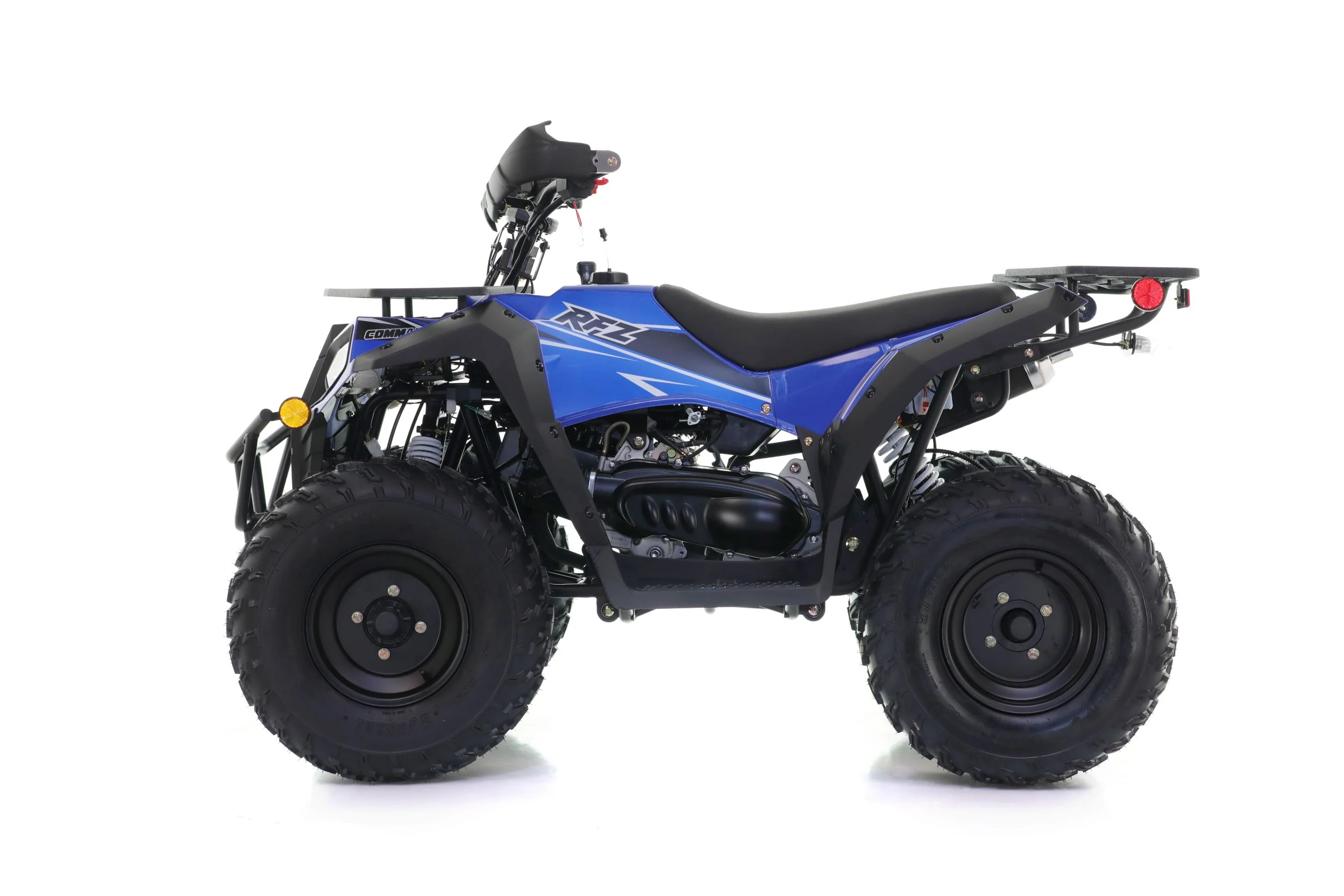

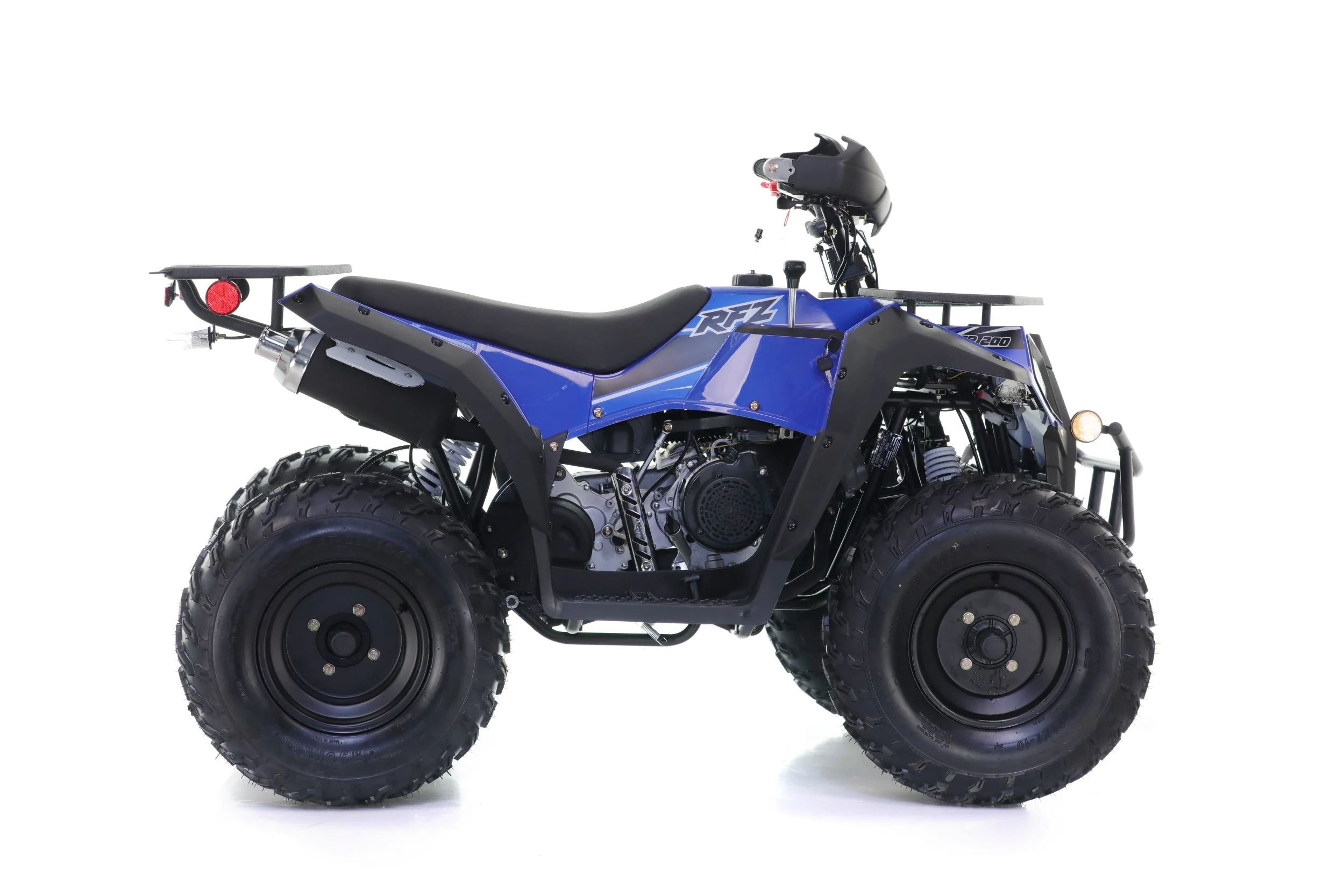

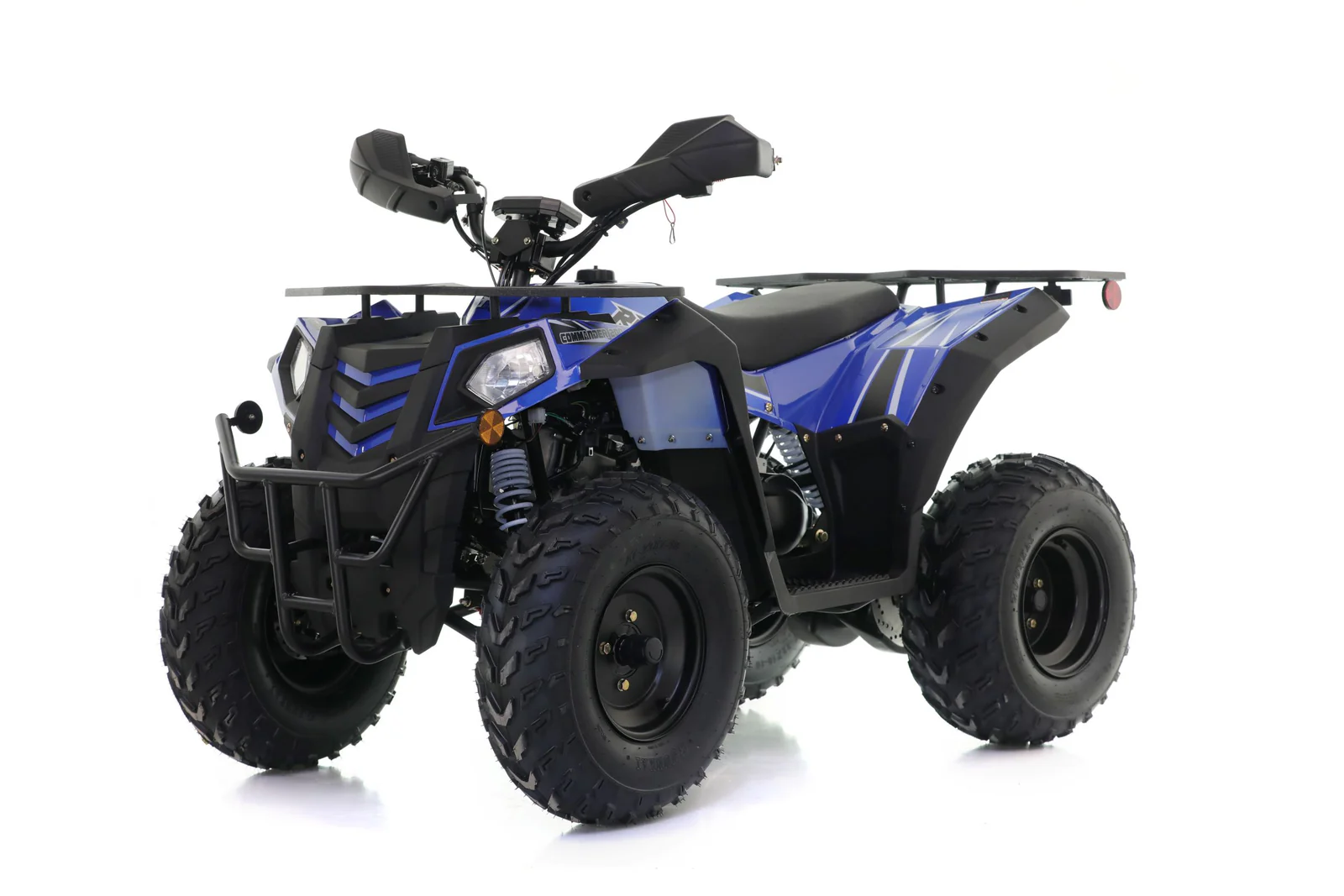

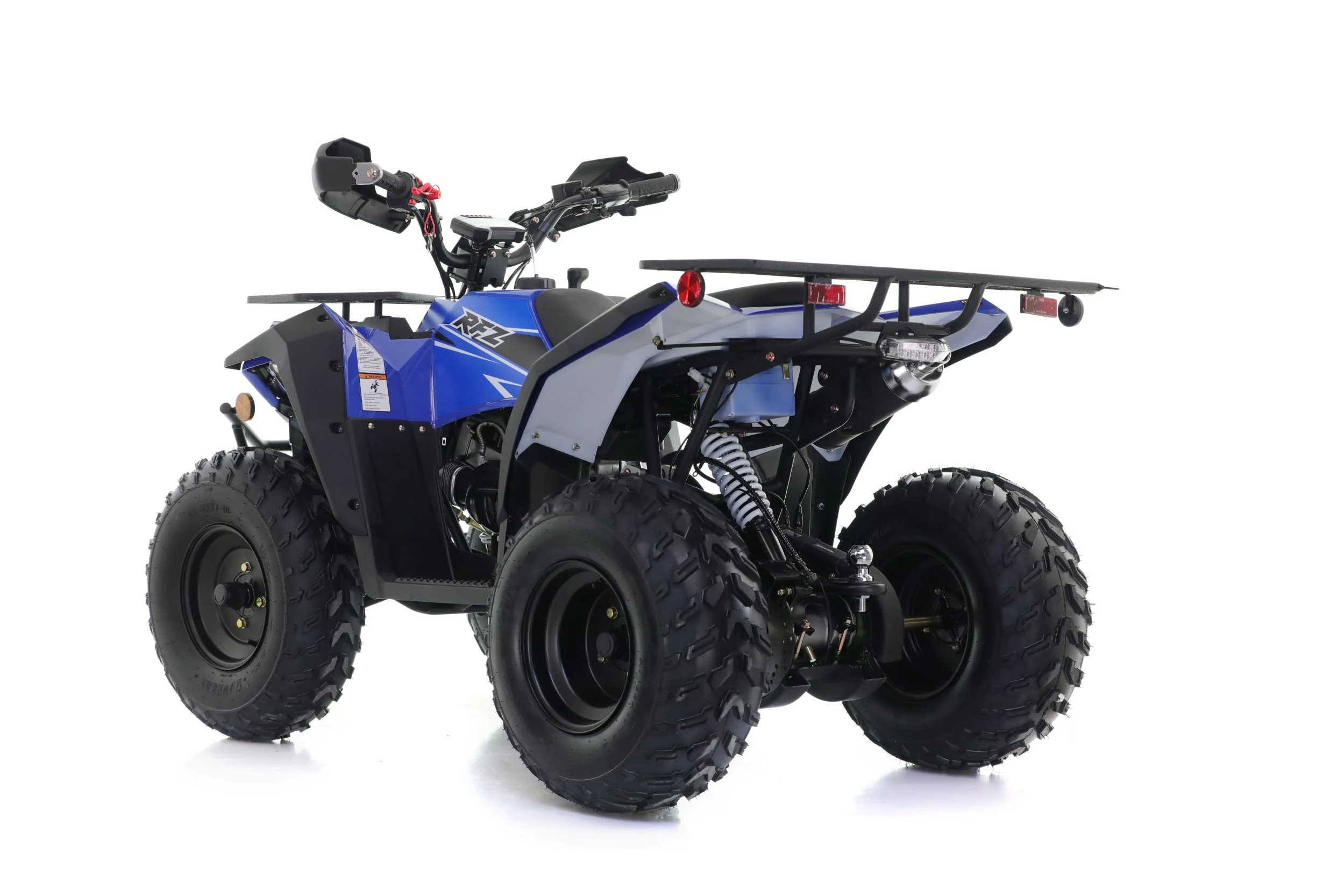

The Apollo Commander 200 Quad is a compact quad bike for ages 12 .and up
Built to Australian standards ready for any terrain but best suited for fun and a cost effective way of getting around the property .
Price $3999 freight and dealer charges where applicable .
Model:
COMMANDER 200
Length mm 1670
Width mm 1020
Height mm 1100
Ground clearance mm 185
wheel gauge Front mm 815
Rear mm 790
Wheel Base mm 1110
Complete Vehicle Dry Mass KG 165
Complete Vehicle Kerd Mass KG 172
Manufactturer’s Maximum Loading Mass KG 150
Steering Baar Angle ≥15°
Max Speed km/h ≤60
Brake Type Front: Disc Brake
Rear: Disc Brake
Brake Actuation Front: Hand Operated
Rear: Foot Operated
Tyre size Front 23X7-10
Rear 22X10-10
Engine Mode 1P62QML
Engine Type CVT, Single cylinder, 4-Stroke, Air-cooled, Horizontal
Displacement cm3 177.3
Compression Ration 10:1
Max. Power kw(R/min) 7.3kW/7500rpm
Max. Torque N.M(R/min) 10N.m/6000rpm
Idle Speed 1700±100r/min
Starting Method Electric
Ignition Method CDI
Lubrication Method Pressure and Splash
Clutch Method Automatic Wet Multi-Plate
Spart Plug Type A7RTC
Engine Oil Capacity 0.9L
Engine Oil Type SJ-10W/40
Magneto Permanent Magnetic
Electric Horn Type 12V1.5A
Battery Model 12V 9Ah
Fuel Tank Capacity 6L
Automotive chassis frame Steel pipe welding type
